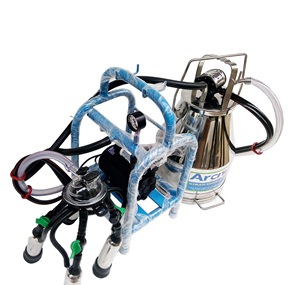

Nano Milking Machine

Nano milking machine is suitable for who have the 1 to 5 cows in small dairy farming entrepreneur with sufficient power supply. Which can be run by suitable ups power source (battery operation by invert) , it undergone international ergonomic design rule with carry able facility by one place to another place easily , it has pulsator technology prevent from common milking dieses by using the hand milking, it is very simple machine for clean milking operation and compact in design , it very affordable concept of milking.
Product code: am 01
features
suitability: 1 to 5 cows
can: 20 liter
one cow at one time
light wight easy carry able
stand mounted
efficient and reliable for fast and hygienic milking
indigenous design with international quality
sturdy and compact
optional: ups power running
technical specification
power unit
motor power (hp): 0.3 hp
rotation (rpm): 1440 rpm
voltage (v): 220 v
flow (lmin): 80-100 lpm
vacuum pump : dry vacuum pump mano block type
maximum tem: 85 c
chassis
length (cm):32
width (cm):32
height (cm):53
weight (kg):15 kg
milking unit specification
can: ss 304 -20 liter’s (iso standard)
pulsator: 60:40 ratios, two exit type
milk liner: 24 mm silicon food grade
teat cup: 4 number ss 304
milk hoses: nontoxic food graded
claw weight (g): 2250 gr.
Milk claw capacity: 240 cc
milk hose: 225mm (24mm x 14mm)
pulse hose: 200mm (14mm x 7mm)
