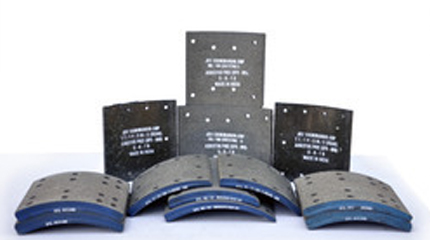

NAO and Asbestos Free Semi Metallic Brake Lining

Made from high quality raw material, the brake linings manufactured by us are known for superior and high performance. These linings are known for their features that include minimum variations of friction, low heat conductivity and minimal lining wear. We are manufacturers and exporters of asbestos brake linings, asbestos free brake linings and non asbestos organic brake linings
Item Code: SFV-999-990ST
NAO and Asbestos Free Semi Metalic Brake Linning With Kevlar (SFV-999 and SFV-990ST) rigid Moulded higher friction ( FF ) Material, Possesses excellent Physical Strength – Cross Braking, Shear, Tensile & Rivet Holding than other non-Kevlar Moulded Material. It has excellent wear characteristics i.e. "Double Life" than other world class asbestos brake lining and is kind to mating surfaces. Hence it is giving very comfort braking to the end user. Recommended for medium and Heavy Duty Truck, Bus, Tractor and Trailer applications.
Brake Type: Dry type i.e. not oil immersed (Air Brake).

Density - 1.90 – 2.10 gms/cm3
Cross Breaking Strength - 40 – 60 N/mm2
Shear Strength - 40 – 60 N/mm2
Acetone Extraction - 0.75 – 2.0 %
Swelling in heat - 0.80 – 2.0 %
Classification – FF
Rockwell Hardness "L" Scale - 85 – 105
Continuous Operating Temperature - 200 C – 250 0C
Continuous Transient Temperature - 400 C – 500 0C

Minimum Order Quantity: 100 Set
Production Capacity: 100 sets per day
