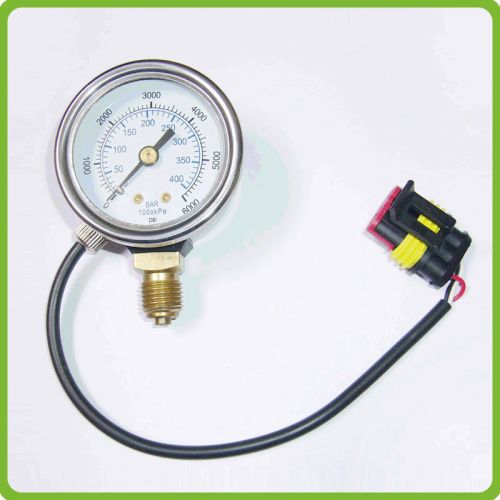

Natural Gas Auto Car CNG Pressure Manometer

MOQ200 Piece(s)
MaterialCase and movement: stainless connector: brass
Durabilitymore than 8000 cycles
Calibration accuracy2.5
Testing Pressure400Bar
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 11 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialCase and movement: stainless connector: brass
Warranty1 year
Sensor TypeOptical sensor
Thread1/4 BSP, M14*1.5
Burst Pressure1000Bar(250% of the max pressure)
Working Pressure200Bar
Over Pressure520Bar(130% of the max pressure)
Testing Pressure400Bar
Water ProofIP54
Calibration accuracy2.5
Leakage Rateless than 0.005%
Assembly positionRadial
Supply voltage minimum12V
Wiring diagram detailsRed wire:+12V Black wire: GND White wire: SIG
Durabilitymore than 8000 cycles

We offer natural gas auto car cng pressure manometer.
Case material: black steel case and pc sensor cover
window: polycarbonate
size: 2"(50mm), other size available
bottom connection: brass thread& internal
thread size: 14"bsp; 14npt
thread style: pf, npt, pt, bsptzg
bourdon tube: c form or coiled shape
dial and pointer: plastic aluminum
accuracy class: 2.5%1.6%
pressure range: 0~400 bar
measuring: 0~200bar
supply voltage: 12v dc
we can make series of gauges for gas and petroleum lines with diameter from 1" to 8".
