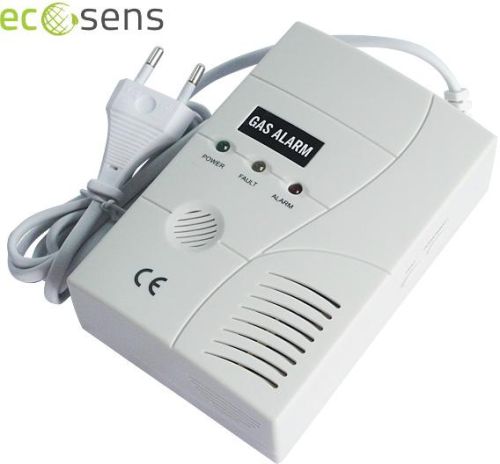

Natural LPG Battery Gas Leak Detector

Specifications
Detects Natural Gas, LPG, and Coal Gas etc. Combustible Gases
Specifications
Gas Leak Detector Alarm
220V, 12V, 9V battery back up
Low battery and fault warning
Connect with solenoid valve
CE,EN50194
Features.
CE, EN50194 approved Gas Leak DetectorAlarm;
5 years lifetime, high accurate hot wire type sensor
Detects Natural Gas, LPG, and Coal Gas etc. Combustible Gases
Power Supply : 90-240V AC+ 9V battery back up, automatic switch between AC & DC power
Three Indicators (3 different LED lights display): Power (Green), Alarm( Red) , Fault (Yelow)
10% LEL sensitivity
Simple installation, ceiling or wall mounted
Sound(85 decibel) and Flash Alarm
Testreset button;
Can be connected with Auto Shut Off Solenoid Valve
Parameter.
Power Supply
110V or 220V AC
Static Current
40mA
Warm-up Time
3-5 Minutes
Humidity Range
10% ~ 95% Relative Humidity (RH)
Working Temp. Range
-10°c ~ +50 °c
Alarm Level
10%±5%LEL
Alarm Reset
Auto Reset after Gas Clears
Sensor
Hot Wire Type Sensor
Indicator Information
Power: Green LED ON
Alarm: Red LED Flashing
Fault: Yellow LED Flashing
Alarm Output
Sound & Flash Alarm; NONC is available
Alarm Sensitivity
