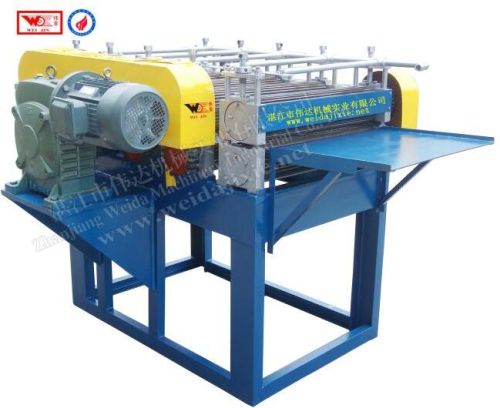

AUTOMATIC Natural Rubber Sheeting Machine, Brand Name : WEIJIN

function of produnct:

this machine press, dewater, flat and cut natural latex coagulum through five rollers, which is a equipment for making smoke rubber.

technical parameter：

model：5yp-150×650/5yp-115×685

roller length：650mm/685mm

roller diameter：150mm/115mm

motor power：4kw/2.2kw

material thickness and width(maximum)：35mm×280mm

capacity (dry rubber sheet：1000kgs/500kgs

working principle:

motor reduce a pair of gear through one grade v-belt drive, drive-gear transfers drive to forth pair of lower roller, each roller work together after through gear drive.
