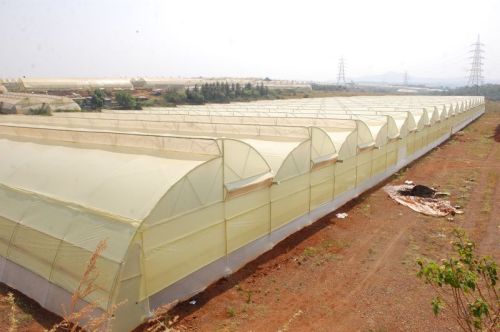

Naturally Ventilated Greenhouse

Get Latest Price

Greed size8 X 4 Mtr.
Ridge Height6.5 Mtr.
Reinforcement for Trellising load25 kg/m2
Gutter Height4.5 Mtr
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Swarnim Agricare Pvt. Ltd.

Sarthana Jakat Naka, Surat, Gujarat

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 24AAVCS4779A1ZZ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Gutter Height4.5 Mtr
Reinforcement for Trellising load25 kg/m2
Greed size8 X 4 Mtr.
Ridge Height6.5 Mtr.
Reinforcement for wind load120 km/hr.
Top and Side vent1.2 Mtr. & 3 Mtr. Respectively

Naturally Ventilated Greenhouse : The naturally ventilated Poly house was designed to meet the growing needs of farmers around the world to produce higher quality crops thus enhance the return. This naturally ventilated poly house is designed to solve the problem of ventilation and humidity and is especially suited for hot and humid weather conditions. This is carried out by Fix openings located in the centre of each of the structure's arches which runs along the entire length and four sides ventilation, which runs along the entire length & breadth of the structure. These openings allow natural ventilation and release hot air.
Features : Structure is made up of Top Quality Hot dipped galvanized round pipe and having wall thickness 2mm and covered with multilayer polyethylene.

Cross reinforcement for better strength
2% Slope in foundation level
All material used in structure like connectors, bracket & fasteners are of hot dipped galvanized.

Technical Specification

Particulars	Specification Of Nhb
Area in Sq. Mtrs	2500-8000
Gutter Height	4.0 to 4.5 mtrs
Ridge Height/Centre height	6.0 to 6.5 mtrs
Foundation pipe	60 mm OD 1200 to 1300 mm length 3mm thick weight 4.20 kgs/mtrs.
Column	76 mm OD, 2mm thick, weight 3.75 kg/mtrs.
Top Purlin	48 mm OD/2.0 mm thick, weight 2.30 kg/mtrs.
Gutter Purlin	42 mm OD 2mm thick, weight 2.10k g/mtrs.
Top Arch	42 mm OD 2mm thick, weight 2.10kg/mtrs.
Bottom cord of the Truss	60 mm OD/2.0 mm thick, weight 2.85kg/mtrs.
Internal Bracing pipe & Cross Bracing	33 mm OD 2mm thick, weight 1.60kg/mtrs.
Balcony pipe	60 mm OD 2mm thick, 2.85kg/mtrs.
Curtain runner	42 mm OD 2mm thick, weight 2.10kg/mtrs.
Curtain shaft	27 mm OD 2mm thick, weight 1.30 kg/mtrs.
Hockey support	33 mm OD 2mm thick, weight 1.60 kg/mtrs.
Flap control pipe	21 mm OD 2mm thick, weight 1.08 kg/mtrs.
Poly film	UV stabilized 200 micron
Fasteners	M6 to M10 Nut bolts 50-150 mm long
Shade net	UV stabilized 50% shade net of any color with manual or auto operation
Bottom Apron	0.6 to 1.5 meter height
Nut bolts	Size 3/8’’
Civil work/Foundation	45 cm dia. and 75cm to 90cm depth
Extra items if any a) Down take pipe b) Trellis system c)	-
