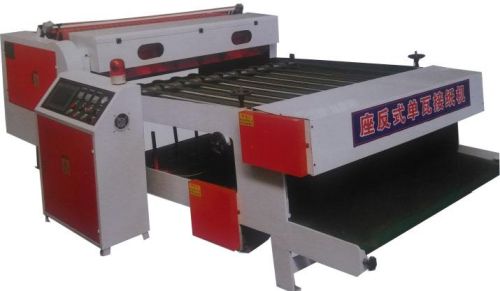

NC High Speed Single Blade Sheet Cutting Machine

We are offering nc high speed single blade sheet cutting machine.
The cutting department
cross cutting part adopts servo control with high precision and fast speed.
Longitudinal cutting part use thin knife,no burr.
The receiving part
1, max speed:80mmin
2, max receiving length: 1300mm
3, max collection paper: 5
4, max stack height: 200mm
5, it can stack automatically without stopping the machine, automatic counting and stamping
6, it is equipped with unique aligning paper mechanism
7, it is the best choice for medium speed single file machine, because the low cost of auto stacking, small occupation area and saving labor.
Main technical parameter
name qzsf-165
max feeding width 1600mm
max receiving speed 80mmin
rotary cutter number 0~180rmin
cutting length 300~9000mm
cutting precision about 1.0mm
motor power 6.2kw
weight 3t
outside dimension lxwxh 5x2.4x1.55m3
