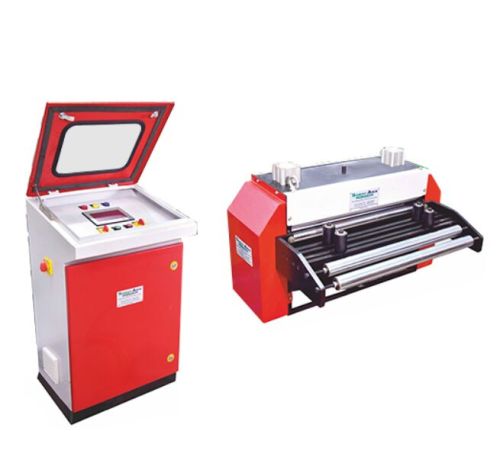

NC. SERVO ROLL FEEDER, Certificate : CE Certified, ISO 9001:2015

features of samay-asia high speed nc servo roll feeder

high-precision feeding:

aiming at the arrival of hi-tech industry, it is using close-loop feedback control computer system and high-resolution encoder to make feeding precision within 10 to 20 microns (varied model has varied accuracy)

programmable feeding function:

provide maximum 20 groups of different feeding length, each group provide 999 times punching to satisfy the special manufacture process. (optional)

human manual mode:

can input 3 different manual speeds to provide use operate more easily and feed material more accuracy.

high efficiency release device:

quickly set up release angle base on press's cam signal and simply material thickness adjustment.

control panel function:

designed feed length, count speed & angle function key for quickly setting. feed length from 0.01 mm to 9999.99 mm.

feeding unit:

the rollers adopt middle hollow style to be light and low inertia for electroplate. roller surface hardness is hrc60 and hard chromium plated to extend lifetime.

structure

*stabilized steel frame construction.

*adopted high quality and brushless servomotor as the drive to efficiently shorten the time for delivery adjustment and testing.

*adopted high-sensitivity decoder to ensure back-feeding accuracy and improve loading accuracy.

*adopted timing belt to safeguard the gap between gears to guarantee low abrasion, noiseless, free of lubrication, security and environmental protection.

*motor is internally installed so as to avoid possible damages caused during transportation and loading.

* standard mounting plate with adjustable feeding height from 40 mm to 140 mm above bolster top level.

control panel features:

the system can be operated in manual/auto mode.

the system can store 20 programs. the programming would have.

feeding speed of material.

acceleration of roll feed.

length setting.

batch quantity.

requirement on power press:

press should have 2 potential free adjustable cam switch (spare) for feed angle signal and pilot release signal.

in case of electronic cam: press should have 2 (spare) potential free relay for feed angle signal and pilot release signal.

feeding direction:our all lines are designed & manufactured for feeding direction of left to right, in case of deviation, please specify while ordering your feed direction.
