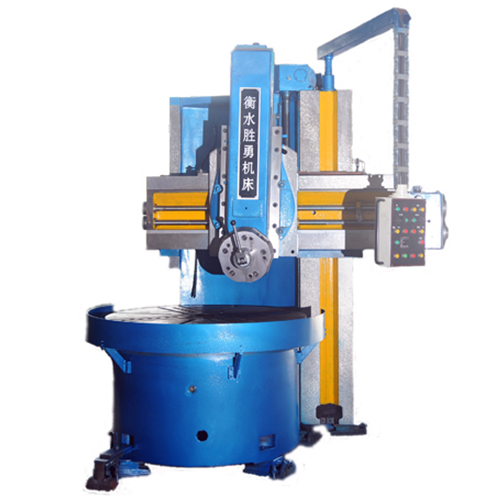

NC Vertical Turret Lathes Machine CK5120

Product name :NC vertical turret lathes machine CK5120
Feature of NC vertical turret lathes machine CK5120
One-year quality assurance service is granted
Automatic chip conveyor, oil chiller are available
High-precision gears are with low noise and stable operation
CNC machine adopt SIEMENS or FANUC system. It can be provided on user`s requirement.
CNC Vertical turret lathe machines VTL machine model:
CK5112CK5116CK5118CK5120CK5123CK5125CK5126
CK5225CK5232CK5240CK5250CK5263 CK5235
Technical specification of NC vertical turret lathes machine CK5120
1 Table diameter 1800 mm
2 Maximum turning diameter 2000 mm
3 Maximum height of workpiece 1200 mm
4 Maximum weight of workpiece 6 t
5 Speed change of table 2.5-80rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 1000 mm
11 Crossrail travel 700 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Rapid travelling speed of tool post 2000 mmmin
16 Machine weight 17.5 t
17 Overall dimensions(L×W×H) 3100×3000×3850mm
Accessories
Warehouse
Workshop
