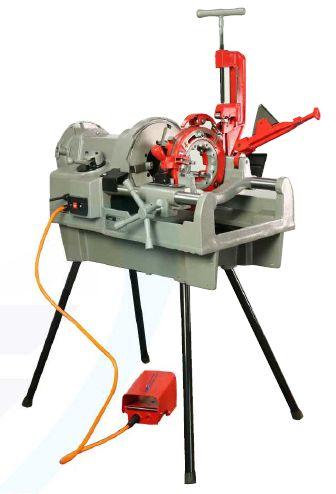

NE-T4-100RT Electric Pipe Threading Machine

Capacity :

• Pipe: ¼”-4”(8mm-100mm)

Features :

• Heavy-duty proven performance.
• Threads ¼”-¾” pipe at 36RPM, 1”-2” at 20RPM, 2½”-4” at 11RPM.
• An induction motor insures sound levels well when using.
• Self-Contained Oil System with adjustable ow control.
• A special capacitor-start / capacitor run motor allows the machine to thread where voltage drop is experienced.
• ¼”-2” universal Die Head; 2½”-4” receding die head allows
• Cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
• Fast transport and set-up.

Standard Equipments :

• Model NE-T4-100RT threading machine.
• Self-opening die head, ¼”-2”
• Receding self-opening die head, 2½”-4”
• ½”-¾” universal HS dies set.
• 1”-2” universal HS dies set
• 2½”-4” universal HS dies set
• Cutter: Capacity: 1/8”-4”(3mm-100mm) pipe
• Reamer : Positive-locking, right-hand 1/8”-4”(3mm-100mm).

Accessories :

• Die head, Self-open
• Reamer, Cutter
• Foot Pedal Switch (optional)
• Nipple Chuck (optional)
• HS Dies ½” to 3/4”, 1” to 2”, 2½ to 4”
• Machine stand & Tool Kit
