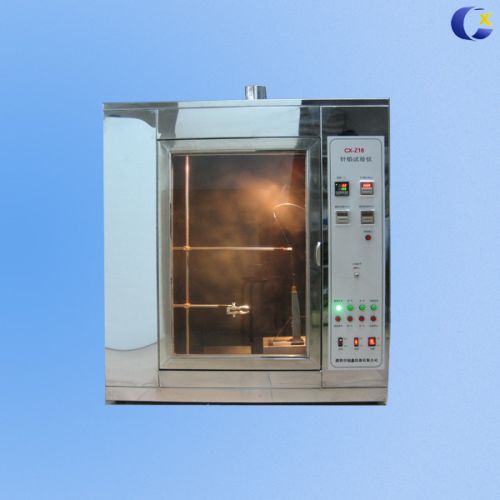

Needle Flame Apparatus, Standard : IEC60695-11-5

We offer needle flame apparatus. According to iec60695-2-2 and iec60695-11-5, cx-z18 needle flame test is applied on the production and quality control department of lighting instrument, hypopiesis electrical apparatus, domestic appliance, machine electric appliance, electrical machine, power tool, electronic instrument, electrician instrument and technical equipment. Also, needle flame tester is fit for the industry of insulation material, engineering plastics and solid combustible material.
Specifications:
angle of burner: incline with 45°(when in test) plumb(when adjust the flame's height)
time of start burning: 0~999.9s±0.1s adjust (30s in general)
time of keep burning: 0~999.9s±0.1s, auto mark, pause with hand
height of frame: 12mm ± 1mm (test tool with height)
burning air: 95% of butagas
test range of temperature: 0~1000°c
requirement of flame's temperature: within 23.5 seconds±1s when the temperature rise from 100°c±2°c to 700°c±3°c
temperature testing thermocouple: φ0.5mm armoured (k pattern) thermocouple
features
•self contained cabinet with large viewing window gives a draft-free test
•dark interior cabinet color for better test viewing
•easy access to testing area during setup
•safety interlock on door halts test if the door is opened
•internal cabinet light can be turned on during test setup and shut off to give better viewing during the test
•convenient built-in flame measurement scale
•built in exhaust fan and control
•control panel has all controls in easy reach including lighting and exhaust
•automatic electronic flame ignition with type k thermocouple and temperature control to automatically measure, verify, and adjust the flame temperature and rate of rise time.
•touch screen controller
