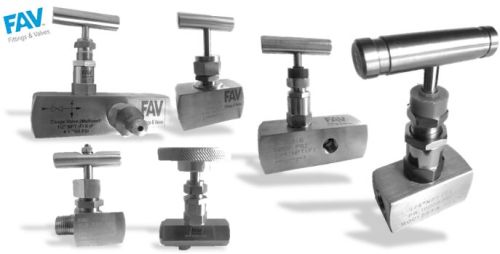

Needle Valve, Usage : Industrial

FAV Instrument Needle Valve is designed for leak free closure, regulation and management of fluids in process systems. With a wide variety of port sizes, end connections, style, temperature and pressure tolerance FAV Needle Valve are critical for instrumentation, fluid and process control system.

FAV Needle valves are designed for stringent application in Oil & Gas, Chemical, Petrochemical etc. industries. These can be used for throttling and straight isolation in process or flow control applications. These metal seated valves are machined from square bar stock and are available in sizes 1/8” to 2” in various connections. 10000 psi valves are rated upto 1” pipe size.

Rising stem& bar stock body design. Metal-to-Metal seating achieves buddle-tight shut-off, longer stem/seal life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance

Available in 316 Stainless Steel, Monel, Duplex & other exotic material.

BSPP, BSPT, ISO, Socket & Butt Weld etc. connections available on request.

Temperature range 100°C to 230°C (400°C  Optional )

Needle Valves are designed for Pressure upto 20,000 psi

Spindle is thread rolled and burnished for smooth operation and long life.

All valves are 100% factory tested with

Dust and thread caps are provided as standard.

A wide array of configurations are available such as Female Needle Valves ,Male Needle Valves, Female to Male Needle Valves and Tube End Needle Valves We also manufacture customized Needle Valves in various styles , shapes and sizes.

End connection options include male / female NPT, Tube OD, and ISO threads from 1/8″ to 1″. Available in stainless steel, carbon steel, brass, and alloy 400. With pressure rating to 10,000 psi and temperatures up to 1,200°F, FAV needle valve meets your needs.

1)     Compact design

2)     Available in variety of material

3)     Low operating Torques

4)     Dust Cap provided

5)     Variety of end connections includes Male / Female NPT, BSPT,                  BSPP

6)     Every valve is factory tested

7)     High Pressure Rating Available till 15000 psi
