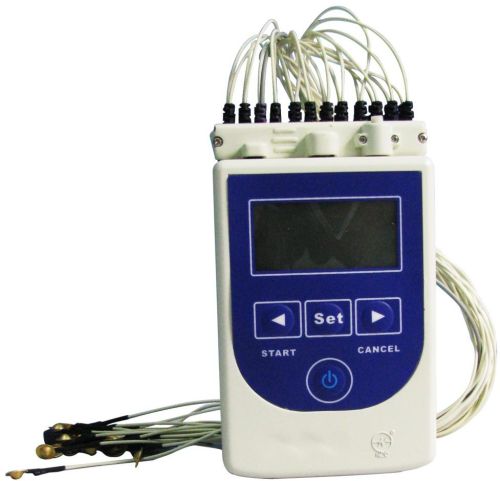

Neurocare C EEG Amplifier

We are offering type-c eeg amplifier is has compact design with big lcd display to show eeg waveform, battery status, serial number,etc.it’s also a low-consumption device and it can be charged by ordinary aa battery to support ambulatory or in-home long term monitoring. Eeg signal is transmitted by wireless bluetooth between amplifier and collector; type-c eeg amplifier has 19 channels eeg and one channel ecg which can be connected by shielded single electrode with din interface.
specification
input channels: 20 (19 monopolar eeg and 1 bipolar ecg)
power supply: 4 6v aa battery or rechargeable battery
internal memory: built-in flash memory card(2g);70hours recording;
connection to pc: wireless bluetooth bluetooth for real-time data transmission; usb(2.0) for data uploading from flash memory card to pc;
operation modes: real-time; ltm(long term monitoring);
ad conversion: 16 bit;
sampling rate: 128hz, 256hz, 512hz
input impedance: ≥10mohm
cmrr: ≥100db;
noise: ≤0.5uvrms;
low-pass filter: 1 ~ 60hz arbitrary
amplitude-frequency characteristic: 0.5hz~60h;
high-pass filter: 0.01s, 0.02s, 0.03s, 0.1s, 0.2s, 0.3s, 1s, 2s, 3s(16hz,8hz, 5.3hz, 1.6hz, 0.8hz, 0.5hz, 0.2hz, 0.1hz, 0.16hz)
interface: usb2.0 (usb1.1), interface transfer rate: 480mb ( 12mb) s;
dimension &weight: amplifier: 130*89*40(mm); 250g;
features
1. Low-power consumption system which can support removable and dynamic recording with internal flash memory card. As long as 72 hours data can recorded inside it with 4aa battery and then upload to hospital computer for doctor’s review, analysis and report.
2. Support real-time eeg data acquisition with wireless bluetooth transmission, meantime, it can isolate 50hz power line interference and guarantee perfect signal while makes patient move freely.
3. Single electrode with touch proof connector which can meet international standard.
4. Lcd display to show one channel waveform, battery status, etc;
5. With event button on the amplifier, it can mark patient's epilepsy seizure accurately.
6. 819 channels eeg plus 1 channels ecg, it can meet doctor's special requirement.
7. Dc power supply for amplifier, no electric shock risks.
8. Compact design and easy to carry.
