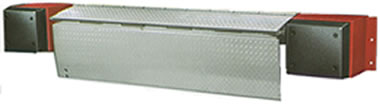

Never Lift Dock Leveler

Dual extension spring lift mechanism.
Heavy duty steel lever, with special EZ-grip handle.
Can be self stored or placed inside building.
Roller-bearing lift mechanism for easy lifts.
Cold-rolled steel hinge pin for added strength and
long life.
Grease fittings throughout.
High-strength steel safety tread plate, 70,000
yield tensile.
Heavy duty bumpers blocks with 4" x 12" x 13"
Tuf-cord bumpers.
Bumper projection = 15"
Secondary gussets for added strength and extended
life.
GENERAL DESCRIPTION
Bondor NEVERLIFT Edge-Of-Dock levelers mount to
dock face and provide a working range of 5" to 5" below
dock. The unit is operated by moving a lifting lever
approximately 50° away from dock edge, and then
returning the lever to its original vertical position. Deck and lip are constructed with high-strength steel
safety tread plate, 5500 psi (or better) minimum yield.
Extended life bumpers are molded of first quality rubber.
Bumper blocks are 516" steel with a full length center
gusset for reinforcement. Long life hinges include grease
fittings throughout.
OPERATION PROCEDURE
Bondor NEVERLIFT is the easiest to operate of all lever-operated dock levelers in America today. Each
NEVERLIFT model comes with a ball-tipped steel lever. With the lever in the operating slot, the operator simply pulls
the lever to a position that is approximately 50° away from dock edge. This lifts the deck and lip. Next, the operator
returns the lever to its original vertical position. This extends the unit outward and allows it to rest in the trailer. There's
absolutely no required back bending, no lifting, no difficult push toward the dock edge, and no leaning over the dock
edge. Just pull back, then return to the original position.
