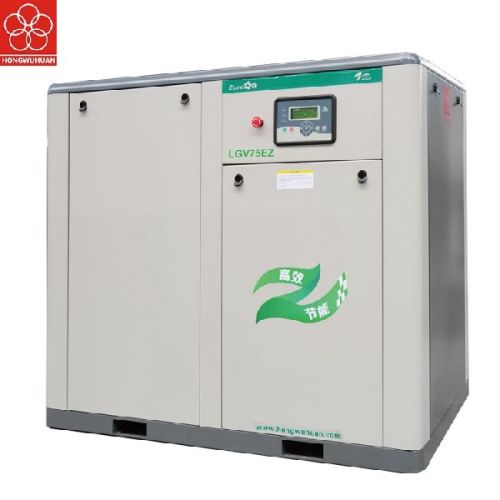

New 75kw Direct Driven Variable Frequency Air Compressor

New 75kw direct driven variable frequency air compressor could adjust direct driven variable frequency air compressor`s capacity from 25%-100%. The relative ac power consumption of new 75kw air compressor is 28%-100%.the most cutting-edge air 75kw air compressor monitor design satisfies customers` individual requirements for air compressors and saves energy.  lgvez series technical parameters                                                                                                                                               model parameters lgv7ez lgv11ez lgv15ez lgv22ez lgv37ez lgv55ez air displacement m³/min 1.15 1.65 2.3 3.6 6.1 10.2 discharge pressure mpa 0.8 0.8 0.8 0.8 0.8 0.8 compressed stage single single single single single single motor power kw 7.5 11 15 22 37 55 motor speed rpm 2950 2950 2950 2950 2950 2950 power supply v/p/hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 start mode y-△ y-△ y-△ y-△ y-△ y-△ drive mode direct drive direct drive direct drive direct drive direct drive direct drive air.
