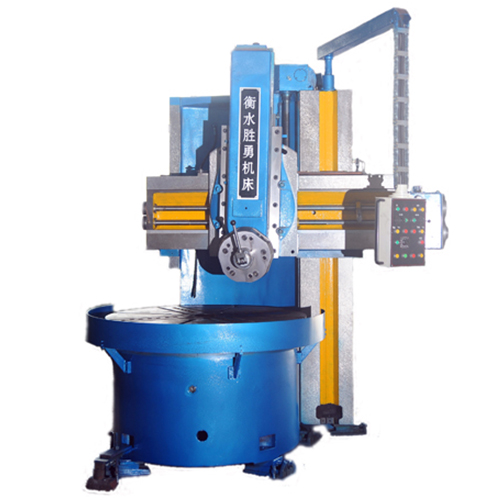

New Century CNC Single Column Vertical Turning Lathe

Single column vertical lathe has the Conventional type and CNC type. The conventional type is represented as "C51_" the NC-type represented as "CK51_". Single column vertical lathe is suitable for finely and roughly machining of the internal and external cylindrical surface, inside and outside taper, surfacing, grooving of the ferrous metals, nonferrous metals and some non-metallic materials with high-speed steel, carbide cutting tools.
Features of single column vertical lathe:
The Single-column vertical lathe (C51 series) is a super rigid machine with big machining capacities, stable and rigid structure and high machining efficiency.
Technical specification of CNC single column vertical turning lathe VTL machine CK5125
1 Table diameter 2300 mm
2 Maximum turning diameter 2500 mm
3 Maximum height of workpiece 1350 mm
4 Maximum weight of workpiece 10 t
5 Speed change of table 2.5-80 rmin
6 Rotation speed of work table 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 1600 mm
Vertical travel of tool post 915 mm
10 Horizontal travel of side cutter bar 750 mm
Vertical travel of side cutter bar 1100 mm
11 Crossrail travel 850 mm
12 Maximum section scale of tool bar 35×45 mm
13 Power of main motor 45 kw
revolutions 1470rmin
14 Power of Feed motor 1.31.7 kw
