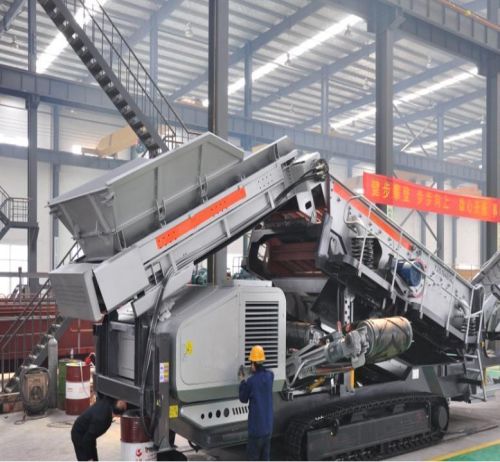

New Crawler Type Mobile Crusher Plant, Power : 150 (kw)

We are offering mobile crusher plants.
1 low transportation cost
2 flexible combination
3reliable performance, easy to keep
1. A brief introduction of crawler type mobile crusher plant
mobile crushing & screening plant is mainly used in materials processing such as in metallurgy, chemical industry, construction, hydroelectric, which needs to be moved frequently. Especially for highway, railway, hydroelectric projects and other mobile stone processing.
users can choose different multiple configuration according to processing of raw materials, feeding size , finished goods' requests. Mobile crusher is applied for multistage crushing for large materials and to crush & screen the materials according to different specifications. It is used for once completed crushing and screening homework for mining, construction, highway, railway, water conservancy and other industries and output materials of good size according to user's requirements.
2. Component of crawler type mobile crusher plant
the mobile crushing & screening plant includes primary crushing plant, secondary crushing & screening plant and belt conveyor etc, all plants are an independent work unit which can finish their respective duties. belt conveyor is for transmitting and stacking materials between different crushing plants. The mobile crushing & screening are of great variety, serial specification, many choices, which can meet customers’ different needs.
3. Features and benefits of crawler type mobile crusher plant
1 )strong mobility
pp series portable crushing and screening plants are of short length. Different crushing equipment is separately installed on a separate mobile chassis. Its short wheelbase and tight turning radius mean they can be transported on highway and moved at crushing sites.
2 )lower the cost of transportation
pp series portable crushing and screening plants can crushing the materials on-site. It is unnecessary to carry the materials from one site and then crush them in another one, which can greatly lower the cost of transporting materials for off-site crushing.
3) flexible configuration and great adaptability
according to the different requirements of different crushing process, pp series portable crushing and screening plants can from the following two processes of ‘crushing first, screening second’ or ‘screening first, crushing second’. The crushing plant can be composed of two-stage plants or three-stage plants. The two-stage plants consists primary crushing plant and secondary crushing plant, while the three-stage plants includes primary crushing plant, middle crushing plant and tertiary crushing plant, each of which is of high flexibility and can be used individually.
4) reliable performance and convenient maintenance
sike brand crushing and screening equipment, such as jaw crusher, impact crusher, vertical shaft impact crusher, cone crusher, vibrating screen, is of good performance, high reliability. Mobile plants mainly use these machines. The design of all these machines have been optimized that result in higher strength, better performance and more compact structure.
4. Technical data of mobile jaw crusher crushing plant
vibrating feeder
gzd-960x3800
gzd-960x3800
gzd-960x3800
jaw crusher
pe600x900
pe750x1060
pe500x750
main belt width (mm)
800
1000
650
main belt discharge height (mm)
2700
2800
2700
side belt width (mm)
500
650
500
side belt discharge height (mm)
2700
2900
2700
power (kw)
150
220
150
transportation length (mm)
13000
14000
12500
transportation width (mm)
3050
3180
3050
transportation height (mm)
3500
4300
3400
transporation weight (t)
39
54
33
mobile impact crusher crushing plant
vibrating feeder
gzd-960x3800
gzd-960x3800
gzd-960x3800
impact crusher
pf1010
pf1210
pf1214
main belt width (mm)
800
800
1000
main belt discharge height (mm)
2700
2700
2700
side belt width (mm)
500
500
500
side belt discharge height (mm)
2700
2700
2700
power (kw)
150kw
200
300
transportation length (mm)
12000
13000
13000
transportation width (mm)
3050
3050
3050
transporation height (mm)
3500
3800
3800
transporation weight (t)
36
42
48
mobile cone crusher crushing plant
cone crusher
cs75
cs160
hp220
vibrating feeder
gld1500/4
gld1500/5
gld1500/5
up hopper volume (m3)
4
5
5
feeding height (mm)
2700
2900
2900
main belt width (mm)
800
1000
1000
main belt discharge height (mm)
2700
2800
2800
power (kw)
150kw
300kw
400kw
transportation length (mm)
12000
12500
12500
transportation width (mm)
3050
3050
3050
transporation height (mm)
3700
3900
3900
transporation weight (t)
38
45
50
mobile vibrating screen crushing plant
vibrating screen
2zs1848
3yzs1860
3yzs2160
closed hopper volume (m3)
5
6
8
closed hopper height (mm)
4300
5000
5000
feeding belt
b800x7.2
b1000x8.5
b1000x8.5
screen under belt
b800x7
b1000x8
b1000x8
screen under belt discharge height (mm)
3500
3500
3500
side blet
b500x5
b650x5
b650x5
side blet discharge height (mm)
3500
3500
3500
front belt
b650x7
b800x8
b800x8
front belt discharge height (mm)
2800
3000
3000
power (kw)
120
150
180
transportation length (mm)
12000
13500
1400
transportation width (mm)
3050
3200
3400
transporation height (mm)
3500
4100
4100
transporation weight (t)
30
36
42
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
