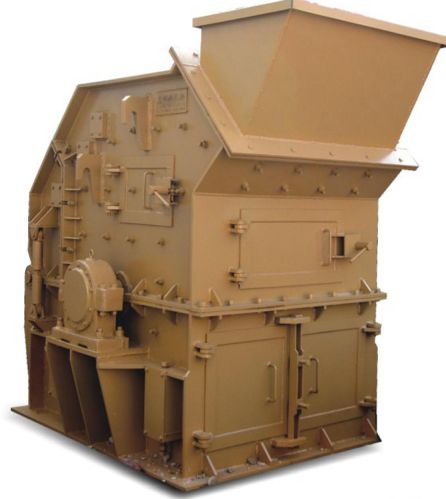

New Fine Crushing Machine, Inlet Size : ≤150 (mm)

We are offering fine crushing machine.
1)stable and reliable performance;
2)simple structure, easy-maintenance;
3)big producing capacity;
professional fine impact crushing machine
1) application of professional fine impact crushing machine
professional fine impact crushing machine is mainly used to crush many kinds of large,medium,small materials whose side length is less than 500mm,and compression resistance should not be more than 350mpa.the fine impact crushing machine is widely used in hydroeletricity,highway,artificial stone and sand,building material,etc.
2) working principle of professional fine impact crushing machine
when the fine impact crushing machine works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect,
under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the
rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers
effects for being recrushed. The materials from large to small all to be crushed at the impact chamber repeatedly.
the process won’t stop till the material are crushed to the required size and then discharged from outlet of the
impact crusher.
3) characteristics of professional fine impact crushing machine:
1. Special structure,
2. Connected without key,
3. High chrome hammer, unique impact liner, deal with hard material,
4. High efficiency and save energy,
5. Cubic shape of product,
6. Adjustable output size.
4) technical data of professional fine impact crushing machine:
name of equipment
technical parameter:
model
800x800
roto parameter
diameter(mm)
800
length (mm)
800
main material
q235
steel plate thickness
16mm
inner plate
material
zgmn13
thickness(mm)
40
hammer
material
high chromium alloy
quantity
24
main shaft material
40cr
engine
model
y225m-4
power(kw)
45
speed(r/min)
1400
voltage(v)
380v 50hz
engine protection level
ip54
manufacturer
weihai hengda engine manufacturing factory
pulley
material
ht200
shape of groove
d
weight(t)
7.8
speed of roto(r/min)
1097
inlet size(mm)
≤150
outlet size(mm)
0-10
capacity(t/h)
35-65
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
