New! ! ! H. 264/mpeg-4/mjpeg IP Camera Module (ht-m001hm)

We are offering New! ! ! H. 264/mpeg-4/mjpeg Ip Camera Module (ht-m001hm).
*cpu:
arm926, 32 bit sc processor
working frequency up to 500mhz
high-performance soc processor
*video encoding:
h.264 baseline profile @ level3.1 encoding
mpeg-4 visual, simple profile l0,1,2 &3 encoding
mjpeg/jpeg baseline encoding
*video processing:
multiple bit stream encoding (h.264/mpeg4/mjpeg)
standard ccd interface
low-cost cmos ov7725 fpc digital interface
megapixel high-definition fpc digital interface
1.3mpixels (720p) @30fps
support various image resolution of h.264, mpeg-4, mjpeg and data stream output meanwhile (multiple bit stream)
cbr/vbr bit rate control, 32kbit/s~ 20mbit/s
*image resolution:
720p(1280*720) full d1(704*576) vga(640*480) cif(320*240) qcf(160*120)
*frame rate:
25 frame/sec. (pal) 30 frame/sec. (ntsc)
*audio encoding:
g.726, g.711, amr audio encoding
voice talkback
high-sensitivity mic input
support built-in stereophonic loudspeaker (optional)
*network protocol:
tcp/ip udp dhcp http pppoe ddns dns ftp rtp rtcp/rtsp upnp smtp sip
*wifi transmission:
802.11b/g/n

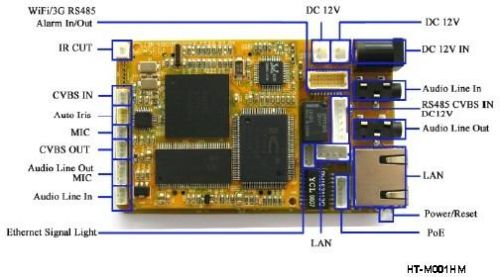

*peripheral interface:
video interface standard ccd interface ( one 3pin bar-socket with 1.25 mm spacing)
low-cost cmos ov7725 fpc digital interface
megapixel high-definition fpc digital interface
loop video output ( one 4pin bar-socket with 1.27 mm spacing), used for ccd signal input only
audio interface 3.5 inch headphone socket, audio line in
3.5 inch headphone socket, audio line out
one 2pin bar-socket with 2mm spacing, microphone in
one 3pin bar-socket with 1.25mm spacing, audio line in/out
network interface rj45 network (support link and active network status indicator)
one 4pin bar-socket with 2mm spacing, network interface
one 4pin bar-socket with 1.25mm spacing, network indicator interface (support link and active network status indicator)
poe interface
one 6pin bar-socket with 1.25mm spacing, poe extended interface
alarm input/output, 485 interface
one 8-channel unwiring io socket, including 2-channel alarm in (switch amount signal), 1-channel relay control output (1-channel normally open and 1-channel normally close contactor) , 1-channel rs485 communicate interface
reset
one reset button, restore to factory default after pressing for 3 sec.
pci interface (on the a-form expansion board, supporting wifi or 3g)
one minipci, compatible with rt3070 wifi wireless network card, huawei wcdma, td-scdma, cdma-2000 network card
ir-cut interface
one 2pin bar-socket with 1.25mm spacing, abc circuit control ir-cut double-filter switchover
auto iris interface
one 4pin bar-socket with 1.25mm spacing, abc circuit control direct-current auto-iris lens
sd card interface
microsd(t-flsah)
rs485, analog composite video signal (ccd input) , dc 12v composite interface
one 6pin bar-socket with 2mm spacing, providing 1-channel rs485, 1-channel cvbs (ccd) input and 1-channel 12v direct current
12v direct current input interface one 12v dc jack interface, two 12v 2pin bar-socket interface with 2mm spacing (112v dc input/output)
wifi, 3g, rs485, alarm in/out composite interface one cvbs composite interface, needing mating expansion board for use
*others:
support motion detection
support sd card storage, 32g at most
ftp uploading recording and image
support 3gpp mobile surveillance
support various ptz protocol
password protection
alarm trigger recording and snapshot
complete network protocol, built-in web, ie accessing, configuring and upgrade
provide software and hardware customization according to users’ special requirements
provide sdk for second development according to users’ need
*system configuration:
browser: ie6.0 or above version
os: microsoft windows2000, xp, vista
*sdk and software support:
provide sdk based on linux
provide h.264 high-performance pc codec library
onvif 1.o interface
provide cms client-end software
ocx control
support individuation ie interface customization and modification
support application function customization
*operating environment:
temperature: -10ºc ~ 55ºc
humidity: under 85%rh
*physical format:
power consumption: less than 4w
power supply: dc 12v
dimension:54mm*87mm*17mm
weight:
package: antistatic bag.
