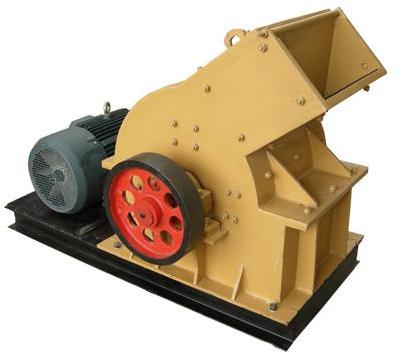

New Hammer Crusher, Power : 7.5 (kw)

We are offering hammer crusher.the features of hammer crusher with high quality
1)ecoonomical
2)high efficency
3)easy to control
1. Describtion of hammer crusher
hammer crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 300mpa and 15% moisture, such as coal, cement, gypsum, alumen, brick, tile, limestone, etc. It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.
2. Hammer crusher features:
hammer crusher for coal crushing is a machine which is utilized to crush the coal, it is the most suitable to crush each brittle materials, like coal, gangue, coke, slag, red sandstone, shale, loose limestone, etc. The compressive strength of the material does not surpass 100mpa; the moisture content does not surpass 15%.
it has the following features: saving the energy, guaranteeing the discharged material size, the higher production efficiency, the lower noise, the less dust and so on. Otherwise, the discharge opening can be adjusted according to the customer’s requirements.
3. Working principle of hammer crusher
the main working part of hammer crusher is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
4. Technical parameters of hammer crusher
model
rotor speed
(r/min)
input opening
size(mm)
max. Feed size(mm)
discharged
size (mm)
capacity
(t/h)
power
(kw)
weight
(t)
overall dimension
(l×w×h) (mm)
φ400×400
1500
145×450
100
0-30
5-8
7.5
0.9
844×942×878
φ600×400
1000
295×450
100
0-35
10-12
18.5
1.03
1054×972×1117
φ600×600
1000
295×570
100
0-35
12-18
45
2.14
1315×840×1501
φ800×600
1000
350×570
120
0-45
20-25
55
2.45
1515×2586×1040
φ800×800
1000
350×850
120
0-45
35-45
55
3.05
1515×2831×1040
φ1000×800
1000
580×850
200
0-45
25-40
110
6.5
3206×2210×1515
φ1000×1000
1000
580×1060
200
0-45
40-80
132
7.6
3514×2230×1515
φ1250×800
750
650×850
200
0-45
20-50
132
11.7
2630×1780×2050
φ1250×1250
750
650×1330
200
0-45
90-110
185
13.2
2630×2180×2050
φ1400×1400
750
1050×1540
250
0-45
120-170
280
17.2
2790×2800×2310
φ1600×1600
600
1500×1785
350
0-60
220-280
450
22.8
3350×3120×2660
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
