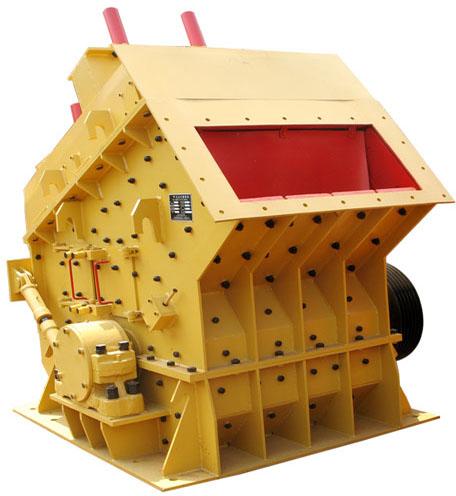

New Impact Crusher, Power : 45 (kw), Max. Feed Size : 300 (mm)

We are offering new impact crusher.advantage of impact crusher:
1.flexibility in adjusting the size of outputting feed
2.easy replacement of spare parts
1. Describtion of impact crusher
impact crusher adopts the newest manufacturing technology and unique structure design, so the discharged product is with cubic and perfect shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350mpa, such as granite, limestone, concrete aggregate, etc.
2. Impact crusher features:
1. Large feed size and high crushing chamber are suitable to crush hard and big materials.
2. Space between impact plates and hammers can be adjusted conveniently, so the shape and size of final product can be controlled.
3. New type of abrasion-proof materials are used, so life of hammers, impact plates and lining plates is much longer.
4. High chromium hammer and unique lining plate are suitable to crush hard stones efficiently.
5. The reasonable structure of plate makes the discharge finer and cubic ,without interior cracks.
6. The unique design simplified the crushing process.
7. Using the hydraulic to open, easy to maintain and change wear parts
3. Working principle of impact crusher
when the machine works, the rotor rotates with high speed when the crusher is driven by motor. Materials enter crushing chamber and impact with hammers on the rotor, and are thrown to impact plate for being crushed, and then are rebounded back to hammers for being crushed again. The materials enter the first chamber, the second chamber, and the third chamber for being crushed repeatedly until they are crushed into suitable size. The final product is discharged from the outlet. Product size and shape can be adjusted by adjusting space between impact plate and rotor.
4. Technical parameters of impact crusher
model
rotor specification (mm)
max. Feed size (mm)
capacity (t/h)
power (kw)
weight (t)
overall dimension (l×w×h) (mm)
pf0807
φ750×700
300
15-30
45
8.1
2210×1490×2670
pf1007
φ1000×700
300
25-60
55
9.5
2400×1558×2660
pf1010
φ1000×1050
350
50-80
75
12.2
2400×2250×2720
pf1210
φ1250×1050
350
70-120
110
14.1
2690×2330×2890
pf1214
φ1250×1400
400
110-180
132
18.6
2690×2688×2890
pf1315
φ1320×1500
500
160-250
200
23.4
3096×3273×2667
pf1320
φ1320×2000
600
200-310
315
27.5
3280×3570×2920
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
