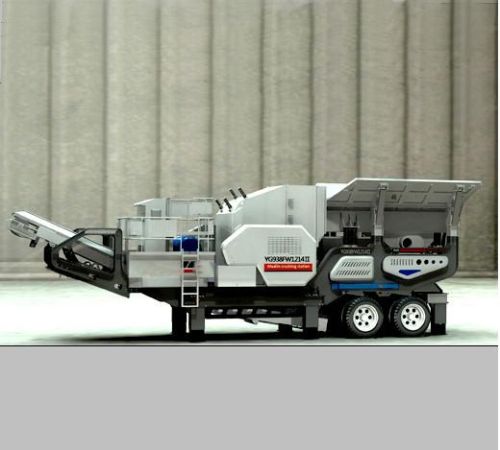

New Mobile Primary Impact Crusher

We are offering mobile impact crusher
.crush materials at primary site
.serve mobile crushing aggregate 25 years
.kinds of crushers sale
1. Describtion of mobile primary impact crusher
mobile impact crusher plant comes in all shapes and sizes and can be made up of many different kinds of equipment. When it comes to portable and moblie crushing plant, recycling attachments, aggregate plant and industry grinding mill plant, count on zhongyi as your single source supplier for equipment.
zhongyi has been serving the aggregate industry for over 10 years, it is one of the most famous rock and mineral processing company in the world, the mobile crushing plant concept designed by zoonye is fully adaptable to all mobile crushing needs.
2. Mobile primary impact crusher benefits
1. It adopts ship form steel structure and low vehicle chassis with light weight. The volume is controlled reasonably. Hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small.
2. Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
3. Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
4. The vehicle control cabinet is equipped with high-tech lcd touch screen and plc control system. Lcd touch screen with man-machine dialogue function makes it possess the functions of key start, misuse tips and protection, electrical control operations, fault and safe tips. It is convenient, efficient and secure.
5. Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. By adopting the automatic separatory hatch door, materials in the wastes hopper would flow either with the side-opening belt conveyor, or with the main materials.
6. Height of belt conveyor is adjustable. It also can be twisted and folded.
7. Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
8. With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics
3. Mobile primary impact crusher
technical data\model
yg938 fw1214ⅱ
yg1142 fw315ⅱ
yg1349 fw318ⅱ
transportation size(mm)
11900×2650×3850
13500×2780×4150
15200×2950×4300
weight(t)
41
52
61
tire configuration
dualaxial
triaxial
triaxial
impact crusher
pfw-1214ⅱ
pfw-1315ⅱ
pfw-1318ⅱ
the maximum feeding size(mm)
500
600
700
capacity(t/h)
130~200
180~320
240~400
vibrating feeder
gzd960×3800
gzd1100×4200
gzd1300×4900
main belt conveyor
b800×8.5m
b1000×9m
b1200×9.5m
side belt conveyor (optional)
b450×3m
b500×3.5m
b650×4m
electric control
standard
control box + control panel
control box + control panel
control box + control panel
optional
control box + lcd
control box + lcd
control box + lcd
hydraulic leg
standard
4
4
4
optional
2
2
2
hydraulic cyclinder
standard
4
4
4
optional
5
5
5
genset (optional) (kw)
270
380
440
iron separator (optional)(kw)
rcyd(c)-8
rcyd(c)-10
rcyd(c)-12
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
