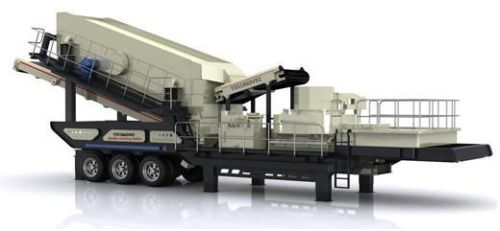

New Mobile Vertical Shaft Impact Crusher

We are offering shaft impact crusher.track-mounted mobile vertical shaft impact crusher
1. High capacity and crushing efficiency
2. Heavy duty design, low cost
1. Describtion of mobile vertical shaft impact crusher
track-mounted mobile vertical shaft impact crusher is a new kind of high efficient crushing equipment, which is of advanced technology, fully featured and can be driven by itself. The deft design of crawler enables it to reach any possible spot of the work site even under horrible terrain condition. The flexibility helps to eliminate unnecessary processes and makes it more convenient in the coordination of accessory machineries and crushing plant. As excellent and integrated design as it is, this plant can be easily transmitted to work site on a trailer and starts working once gets to the spot. The portable crawler jaw plant, meeting the technical qualification, has the features of high productivity, crushing ratio and uniformed product size.
2. Mobile vertical shaft impact crusher features:
1. Fuel oil saving rate can reach 25%, and the sieving mode is not only in line with environmental protection but low cost.
2. Convenient transport, no harm to road, multifunctional equipments and wide application scope.
3. Turning in place with the capability of all-wheel drive, standard configuration, fast equipment changing, perfect protection system, best fit in narrow and complicated terrains.
4. Light weight, small size and best fit in narrow place.
5. The moving screen equipment uses double-deck sieving machinery, which main frame equipped with excellent grid screening gallery, can stand freely without support.
6. The attaching power package is the most optimized design.
7. Mechatronic-hydraulical integrated multifunctional construction machinery and highly constructed with the small, medium and large size.
3. Mobile vertical shaft impact crusher application:
1. It is widely used in the field of mining, coal mine and construction waste recycling, and performs well on the site of earthwork, urban infrastructure construction, road construction and construction field.
2. Portable crawler crushing and screening plant has the feature of multifunction operation.
3. Processing topsoil and other materials, separating viscous concrete aggregate, applicable for construction and demolition industry, quarrying industry and screening after crushing.
4. Eco-friendly concept of mobile vertical shaft impact crusher :
noise collecting system, sound-proof system, compact and flexible equipment can further meet construction waste crushing work between cities. Suitable diesel noise pollution discharge system, effective dedusting system and release system can remote control the barriers in the portable crushing and screening plant while the pre-screening system can greatly increase crushing efficiency
mobile vertical shaft impact crusher
technical data\model
y3s1848v81
y3s1860v92
y3s2160v140
transportation size (mm)
13500×2830×4350
15600×2830×4350
15600×3100×4480
weight(t)
36
48
61
tire configuration
dualaxial
dualaxial
triaxial
vertical shaft impact crusher
vsi-8518
vsi-9526
vsi-1140
the maximum feeding size(mm)
31
36
49
capacity(t/h)
100-260
150-380
225-520
belt conveyor under vibrating screen
b800×7m
b800×8m
b1000×8m
self-loaded belt conveyor
b800×2.2m
b800×2.5m
b1000×2.5m
vibrating screen
3yzs1848
3yzs1860
3yzs2160
electric control
standard
control box + control panel
control box + control panel
control box + control panel
optional
control box + lcd
control box + lcd
control box + lcd
hydraulic leg
standard
4
4
4
optional
2
2
2
hydraulic cyclinder
standard
0
0
0
optional
2
2
2
genset (optional) (kw)
330
440
600
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
