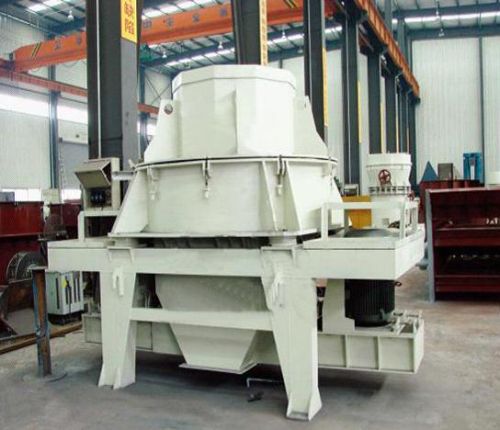

New Pcl Sand Making Machine, Production Capacity : 10-30 (t/h)

We are offering sand making machine.
1-reasonable structurer and design
2-excellent service
3-economical durable
4-special dust device
1. Describtion of pcl sand making machine
sand making machine (namely pcl vertical shaft impact crusher) is of high-power and low-consumption, which is designed depending on several years’ hard work and study of mechanical mining equipment. Sand making machine absorbs advanced technology of the same products of barmac company of america, now it is of the international level. Sand making machine plays an important role in crushing minerals into pieces. Pcl vertical shaft impact crusher is widely used in all kinds of minerals, cement, refractory material, carborundum grain, glass raw material, construction sand, stone stock and all kinds of metallurgy slag, especially carborundum, sintered bauxite, magnetite, such materials are with features of very hard and anticorrosion. And sand making machine is more productive than other kind of crushers.
2. Features of pcl sand making machine
1. Simple structure and low operating cost;
2. High crushing ratio with low consumption;
3. Function of fine crushing and crude grinding;
4. Slightly influenced by moisture content of material, and the max moisture content is about 8%;
5. More suitable for crushing mid-hardness and hardness materials;
6. Cubic shape of final products, high density of piling up and low iron pollution;
7. More wearable and easier maintenance;
8. Low working noise (lower than 75 decibel) and light dust pollution.
3. Technical data of pcl sand making machine
model
rotate speed of impeller (r/min)
max feed size (mm)
power (kw)
weight (including motor) (t)
capacity (t/h)
overall dimensions (mm)
pcl-600
2000-2600
30
2×30
5.6
10-30
2800×1550×2030
pcl-750
1600-2100
35
2×45
7.5
30-50
3300×1800×2440
pcl-900
1300-1700
40
2×55
12
50-80
3750×2120×2660
pcl-1050
1100-1450
45
2×110
16
70-120
4480×2450×2906
pcl-1250
950-1200
45
2×132
22
80-150
4563×2650×3176
pcl-1350
900-1200
50
2×160
26
120-200
5340×2940×3650
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
