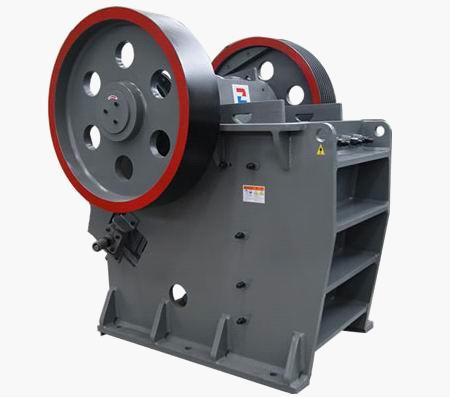

New Pev Jaw Crusher, Power : 30(KW), Max. Feed Size : 380 mm

We are offering jaw crusher.pev jaw crusher
1.high crushing ratio jaw crusher
2.symmetrical deep crushing chamber
3.wearable parts
4.iso,ce,bv
1. Brief introduction of pev jaw crusher
series of european jaw crusher is a new product absorbing world advanced technology, bases on our present traditional jaw crusher, and adopts three-dimensional design theory. Comparing with traditional jaw crusher, it has larger capacity and crushing ratio, bigger range of input size, evener product size, and easier maintenance
2. Features of european jaw crusher
1. symmetrical deep crushing chamber is adopted to maximize range of feed size, capacity and crushing ratio.
2. Three-dimensional software is adopted to optimize crusher parameters and parameter proportion, and reduce equipment self-weight, so capacity is increased more than 30%.
3. bearing seat is designed integrally, so manufacturing difficulty is greatly reduced, and bearing life is increased.
4. here is a thick replaceable plate on the top of moving jaw to prevent moving jaw from being impacted.
5. wedge is adopted to replace traditional gasket, so the adjustment is much easier and more reliable. discharging size can be adjusted into any size of the adjustment range.
3. Technical parameters of european jaw crusher
model
max. Feed size (mm)
discharge size (mm)
capacity (t/h)
main shaft speed (r/min)
power (kw)
weight (t)
pev400x600
380
40-80
20-65
270
30
7.02
pev500x750
450
50-100
45-107
250
55
10
pev750x1100
630
80-140
136-296
225
110
23.1
pev900x1200
750
100-220
224-498
200
132
42.5
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
