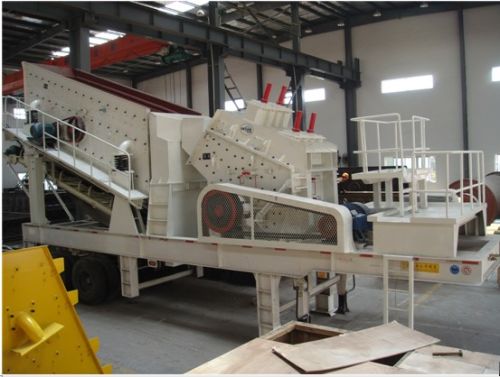

New Sceondary Impact Crusher, Screen

We are offering impact crusher, screen etc.reasonable structurer and design
-excellent service
-economical durable
-special dust device
the features of sceondary impact crusher + screen
1. The plant is designed with shipform structure made of steel and low chassis. It is light in weight. Owning to the reasonably designed body, its transportation turning radius is quite small with high maneuverability.
2. Belt conveyor for recrushing material can be twisted and folded for an easy maintenance of equipments on site and a convenient replacement of accessories.
3. Belt conveyor above the vibrating screen can be folded and put on the vibrating screen to reduce the transportation space.
4. The vehicle control cabinet is equipped with high-tech lcd touch screen and plc control system. Lcd touch screen with human-machine dialogue function makes it process the functions of key start, misuse warning, protection, electrical control operations, fault and safe tips, which is convenient, high-efficient and secure.
5. The automatic-portable conveyor for return material make the installation of the whole plant is quite easy.
6. Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
7. The mobile crushing & screening plant can be customerized in design. It can be manufactured either crushing first or conversely.
vibrating screen + impact crusher
technical data\model
y3s1860 f1214
y3s2160 f1315
y3s1860 fw214ⅲ
y3s2160 fw315ⅲ
transportation size(mm)
13400×2820×4350
13400×3100×4350
13400×2820×4350
13400×3100×4350
weight(t)
40
47
40
48
the maximum feeding size (mm)
300
350
300
350
capacity (t/h)
90-180
120-250
90-170
180-270
tire configuration
triaxial
triaxial
triaxial
triaxial
impact crusher
pf-1214
pf-1315
pfw-1214ⅲ
pfw-1315ⅲ
belt conveyor under vibrating screen
b800×8m
b1000×8m
b800×8m
b1000×8m
vibrating screen
3yzs1860
3yzs2160
3yzs1860
3yzs2160
electric control
standard
control box + control panel
control box + control panel
control box + control panel
control box + control panel
optional
control box + lcd
control box + lcd
control box + lcd
control box + lcd
hydraulic leg
standard
4
4
4
4
optional
2
2
2
2
hydraulic cyclinder
standard
0
0
0
0
optional
2
2
2
2
genset(optional)(kw)
270
380
300
440
we(shenzhen yuhan electro-mechanic co.,ltd)are pleased to introduce you ourselves as one of the leading and well established/manufacturing and supplying of high quality products as below main items:
stone production line:
including:
jaw crusher
impact crusher
cone crusher
hammer crusher
vibrating screen etc
sand making production line:
including:
jaw crusher
sand making machine (vsi crusher)
ball mill
cone crusher
hammer crusher
sand washing machine
vibrating screen etc
we have a perfect after-sales service system and team with professional after-sales service has provided customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order.
