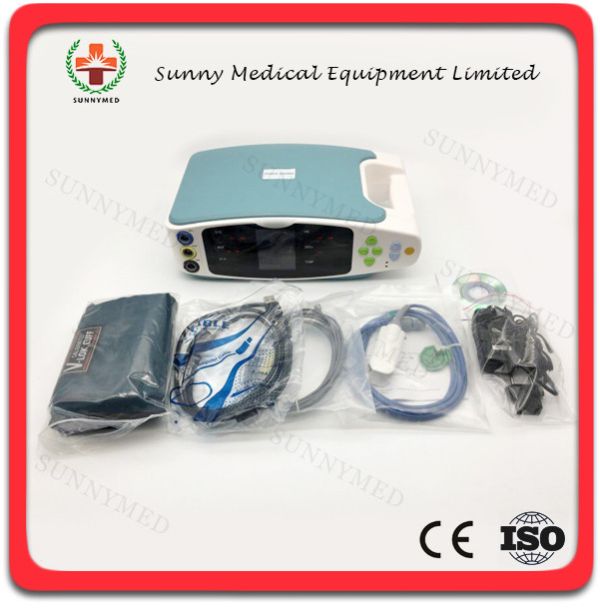

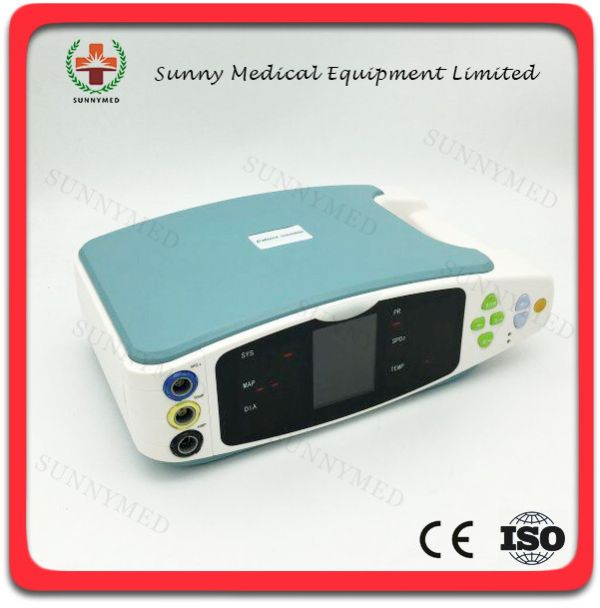

New Type Nibp SPO2 Temp Portable Vital Signs Monitor

Unique outline design, skillful and portable Clear and bright color LCD with real time display and large LED display values Intelligent Measuring of NIBP/SpO2/PR/PLETH/TEMP Storage/Review trend data up to 129 hours and 3888 groups Audio and visual alarm Built-in rechargeable Li-ion battery, up to 4-hour power supply Automatic shutdown for power saving Unique Tele-monitoring and Synchronization retransmit function Utility PC software package for long time real time monitoring, web transferring,

history data uploading/review/print/storage.

Technical Specifications:

1. General Specifications: Size: 300mm×183mm×99mm Net Weight: 1110g Display Specification Measurement Display: color LCD screen & LED Power Supply Indicator: Dual-color LED (red/green) Classification:BF type applied part

2. Power Supply AC Power Adaptor: Input: 100~240VAC, 50/60Hz Output: DC 5V, 2A Battery: Li-ion rechargeable battery, 3.7V, 3AHr Operating Time: 4 hours with full battery capacity. (Condition: 25℃, NIBP working period is 10 minutes) Recharge Time: 8 hours

3. Environment Temperature Working:0~45C Transport and Storage: -25~85C Humidity Working:15 ~95 % Transport and Storage: 10 ~95 % (no condensation)

4. Monitoring Parameter SpO2 Measurement object: Adult, Pediatric, Neonate SpO2% Measuring Range:0~100% Resolution:1 % Accuracy:2 %(90~99%), 3 %(70~89%),unspecified (0~69%) Pulse Rate Measuring and Alarm Range:30~250bpm Resolution: 1bpm Accuracy: 1bpm NIBP Measurement object: Adult, Pediatric Method: Oscillometric Mode: Manual, Auto, STAT Measuring Interval in AUTO Mode: 1, 2, 3, 5, 10, 15, 20, 30, 45, 60 (min) Measuring Period in STAT Mode: 5 min Cuff Pressure Range:0 ~300mmHg Pulse Rate Range:30~250bpm Measurement Rage: Adult 30~255mmHg, Pediatric 30~160mmHg Over-pressure Protection: Adult 300mmHg, Pediatric 220mmHg Pressure Resolution : 1mmHg Temperature Input: Body surface thermal-sensitive resistor temperature sensor Measuring Range: 0~50℃ Accuracy: 0.1℃

5. Storage and Review Maximum Data Quantity: 3888 groups
