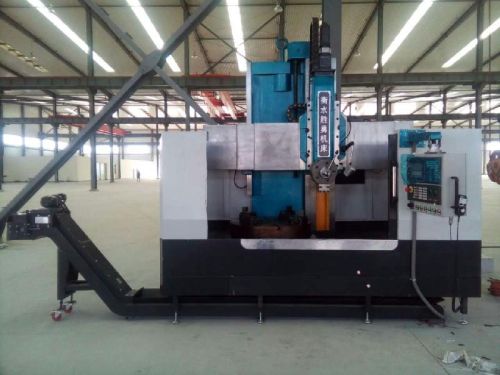

New Vertical Lathe Turret Specifications

This series of numerical control new vertical lathe can be used to process disc-shaped parts such as  tire mold, the rotary support, the gas turbine impeller, the flange plate and so on. Vertical lathe turret can process cylindrical surface, conical surface, arc surface and some combination of complex curved surfaces. Spindle encoder can be threading and achieve constant speed cutting.
vertical turret lathe specifications: Spindle of the table adopts the high precision adjustable radial clearance double column short cylindrical roller bearing centering, and adopts the constant current hydrostatic guide axially to make the table have the characteristics of high rotation precision, large bearing capacity and small thermal deformation.
Technical specification of CNC new Vertical turret lathe machine CK5123
1 Table diameter 2000mm
2 Maximum turning diameter 2300mm
3 Maximum height of workpiece 1300mm
4 Maximum weight of workpiece 8 t
5 Speed change of table 2.5-80 rmin
6 Working table Step of rotation speed 16
7 Feed rates 0-1000 mmmin
8 Step stepless
9 Horizontal travel of tool post 1250mm
Vertical travel of tool post 915mm
10 Horizontal travel of side cutter bar 650mm
Vertical travel of side cutter bar 1000mm
11 Crossrail travel 750mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470
