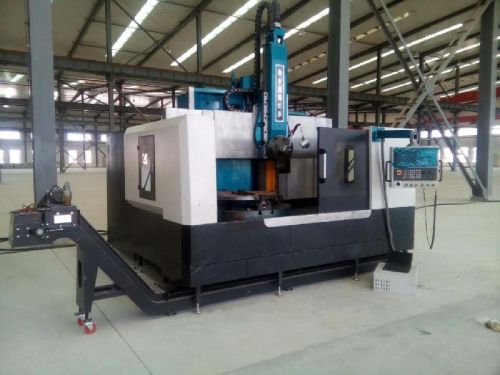

New Vertical Turret Lathe Vtl Working

Vertical lathe machine vtl machine can conduct turning for the tools like high speed steel machine ferric metal, non-ferrous metal and hard alloy,part of non-metal elements. Vertical turret lathe working is appropriate for rough and fine machining of complexed surfaces.Vertical lathe machine vtl can also be designed for cutting groove and counter boring, etc.
Single column vertical lathe machine vtl table, base, columns, beams and other parts of the feed movement is not connected, the accuracy of each other can be adjusted independently.Table, base, bed, column, beam and other major components can be designed into numbers of modules in order to meet different requests.

Technical specification of new vertical lathe prices CK5126
1 Table diameter 2300mm
2 Maximum turning diameter 2600mm
3 Maximum Height of workpiece 1300mm
4 Maximum Weight of workpiece 10 t
5 Speed range of table 2.5-80 rmin
6 rotation speed of work table 16
7 Range of feed rates 0-1000 mmmin
8 Step stepless
9 horizontal travel of vertical slide 1600 mm
Vertical travel of vertical slide 915 mm
10 Horizontal travel of side tool post 750 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 850 mm
12 Maximum size of tool bar section 35×45 mm
13 Power of main motor 37 kw
Rotating Speed 1470rmin
14 Power of fe
