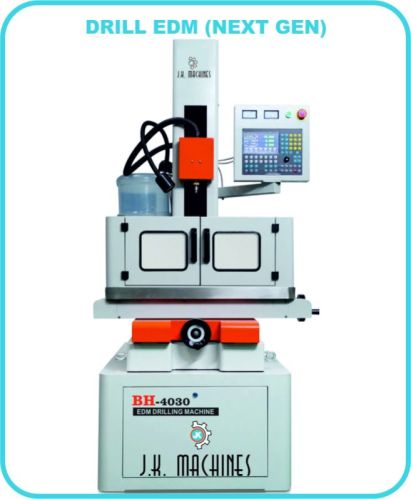

High Pressure Next Gen Drill EDM Machine, Voltage : 440V

Listing ID #6976889

Get Latest Price

MOQ 1 Piece
Brand NameJ. K. Machines
MaterialMild Steel
Driven TypeElectric
ColorRed & Grey
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Brand Name J. K. Machines
Material Mild Steel
Driven Type Electric
Color Red & Grey
Condition New
Pressure High Pressure
Voltage 440V
Machine Weight 100-200kg
Country of Origin India
Operating Mode Semi Automatic
Machine Type Drill EDM (Next Gen)

Salient Features

Ball screw for X and Y axis
L. M. guide for Z axis
Parameter changing is allowable during operation
Job material steel/copper/brass/aluminium/carbide
Adjustable high pressure compact water pump with filtration
3 axis DRO with depth control
Motorized work head movement
Electrode dressing facility
Job holding fixture & clamp
Tap water is used as dielectric fluid
Precise granite table
Compact footprint
Brass & copper electrodes can be used
Machine lamp
Automatic lubrication pump

Standard Accessories

Leveling Pads : 4 Nos
Clamping Kit: 1 Set
Tool Kit: 1 Set
Water Can: 2 Nos.
Guides: 3 Nos.
Electrodes: 30 Nos. Rubber Seal: 5 Nos

Optional Accessories

Start hole for wire cut edm
Gas discharge
Ejector pins
Cooling pins
Air vent for forging die
Jet hole
Filter hole
Remove broken tap

Technical Specification

Technical Specification	Unit	BH-4030	BH-5040
Dimension of working table ( X x Y )	mm	400 x 600	440 x 630
Travel of working table ( X x Y )	mm	300 x 400	400 x 500
Z axis travel ( Z + W )	mm	400 + 350	400 + 350
Distance from quill to table	mm	85 - 435	85 - 485
Max. machining current	amp	30	30
Drilling range	mm	0.30 - 3.00
Max. electrode length	mm	500	500
Max. workpiece weight	kg	200	300
Max. machining speed	mm/min	30 - 60	30 - 60
Max. power consumption	kVA	3.5	4
Drive system for Z axis		Servo Motor
Input power supply	V	3 Phase, 415V , 50Hz
Machine dimension	mm	1060 x 1050 x 1950	1250 x 1150 x 2100
Machine weight	kg	500	600

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Company Details

Electric Discharge Machines (EDM) of the highest calibre are our area of expertise at JK MACHINES in Delhi. We provide cutting-edge solutions to meet the varied needs of our clients in the industrial industry thanks to our expertise and dedication to quality.

We are dedicated to meeting the exact machining demands of our clients by offering durable and efficient Electric Discharge Machines. Modern technology is used in the development of our equipment, guaranteeing high levels of precision, productivity, and durability.

Customized Solutions:

We are aware that every production procedure has unique needs. As a result, we provide our customers with customised solutions that are specially designed and produced to meet each customer\'s individual demands. In order to develop solutions that are precisely created to boost productivity and efficiency, our knowledgeable staff works closely with customers.

Exceptional Service:

We work hard to provide excellent service, offering prompt and trustworthy assistance at every turn, from product selection to installation and after-sales support. Our friendly and knowledgeable team is ready at all times to assist clients and ensure that their needs are met with the highest professionalism.

Industry Expertise:

Our team of experts is very informed and talented in electric discharge machining and has years of experience in the field. We keep abreast of the most recent industry trends, allowing us to offer cutting-edge solutions that fulfil the shifting needs of our clients.
