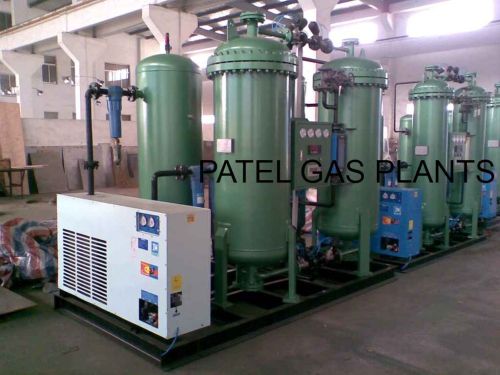

Nitrogen Gas Plants

We are offering nitrogen gas plants,
technical specifications
flow rate:
5 nm3h to 1100 nm3h
purity:
95% to 99.9995% (based on requirements)
dew point:
-40°c to -50°c
operating temperature:
5°c – 50°c
nitrogen generators produce nitrogen gas from compressed air and offer a cost-effective, reliable and safe alternative to traditional nitrogen gas supplies such as cylinder or liquid.
psa technology for nitrogen generation:
nitrogen generator consist of two columns filled with carbon molecular sieve (cms). Pre-treated compressed air enters the active column and follows up through the cms. Oxygen and the other gases are being adsorbed while the nitrogen passes through. The active column is pressurized. When pressure is released, column becomes inactive and completely regenerate. In order to secure steady flow nitrogen generator is built from two columns; one is active while the other is inactive. At the end of cycle they switch roles.
technical specifications:
plug & play solutions
fully automatic process
stable outlet gas purity
highly competitive production cost
open ended concept with one or several interconnected lines
plc based control and monitoring with high definition color touch screen panel
ergonomic design for an easy and limited maintenance
reliable, tested and controlled components for a long lasting performance.
Low energy consumption thanks to a high efficiency molecular sieve
optional features
air compressor, air dryer, air tank
cylinder filling system
gas booster
gas analyzers
flow meter
remote monitoring, 24h7
rentalmaintenance solutions
flexible design for indoor and outdoor locations : skid mounted or containerized plants available.
