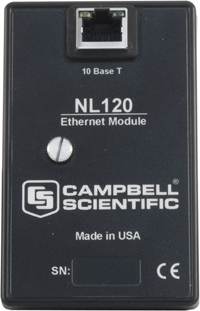

NL120 Ethernet Module

The NL120 allows the datalogger to communicate over a local network or a dedicated Internet connection via TCPIP. This small, rugged communication device connects directly to the 40-pin peripheral port on a CR1000 or CR3000 datalogger.
A 10baseT Ethernet straight through cable is used when the cable is run from a hub to the NL120. A 10baseT Ethernet crossover cable is used if the cable is run directly from the computer to the NL120. For cable length longer than 9 ft, the 10baseT Ethernet cable must be shielded.
Features
Smallest Ethernet Module available for our CR1000 and CR3000 dataloggers
Connects directly to the 40-pin peripheral port on a CR1000 or CR3000 datalogger
Communicates over a local area network or dedicated Internet via TCPIP
Specifications
Power Requirements: 12 V supplied through the datalogger’s peripheral port
Typical Current Drain: 20 mA
EMI and ESD Protection: Meets requirements for a class A device under European Standards
Application of Council Directive(s): 89336EEC as amended by 89336EEC and 9368EEC
Standards to which Conformity is Declared: EN55022-1; 1995 and EN50082-1: 1992
Cable Requirements: Ethernet cable must be shielded if the length is greater than 9 ft
Software Requirements
LoggerNet: Version 3.2 or later
PC400: Version 1.3 or later
DevConfig: Version 1.5 or later
