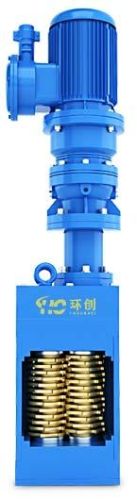

No Drum Grinder

We are one of the quintessential manufacturers, suppliers, and exporters of No Drum Grinder from Xiamen, Fujian, China. For us, it is a matter of pleasure to offer the finest range of No Drum Grinder at economical rates in the market, and the grinder is available in different sizes. Since the No Drum Grinder is in high demand, we carefully process it to make sure that it is of the highest quality. We package the No Drum Grinder using airtight packaging and deliver on time.

Working principle :

• Sewage with solid waste flow into the grinder
• Waste are intercepted by the rotating drum and transmitted to the cutting chamber
• Most sewage and small particles pass through the rotating drum
• Wastes are shredded into particles and pass through the cutting chamber
• Particles flow away

Features :

• Easy and flexible to install - Applicable for most pumps and channels, no need transformation.
• Mechanical seal - High pressure resistant, up to 6.3kg/cm², No need cleaning, adjusting the stuffed and pressing cap
• Double shafts - Compared with single shaft grinder, it is suitable for more waste types. Wastes are cut by the two counter rotating shafts.
• Optional cutters - Different gear design is available in according with different situation. Titanized cutters and spacers are optional.
• High flow side bar - Increase the flow rate, Reduce the waterhead loss, Guide the wastes into the cutting chamber
• Low base - It enables the cutting chamber to maximize its cutting ability when the flow is low.
• Upper clamp device - It is for simple fasten and maintenance, no need to lift the grinder out of the water.
• Shaftless stainless steel rotating drum - Shaftless design, prevent the waste from winding and blocking the grinder.
• Small gaps between the drum and cutter - Small gaps allows higher waste capture rate
• Bush type guider - Guiding the rubbish into the cutting chamber and protecting the seal from damaged by sand and stone.

Control system :

• Siemens touch screen, English display. Equipped with MODBUS interface, makes remote control is available.
• Key electric components are from world famous brands like Siemens, ABB, Schneider and so on.
• Can be set to automatic start, stop,and running at preset time and times.
• Stall current, reverse times, reverse time can be set as you need.
• Have protection for motor leakage, overload,overheat, short circuit,default phase
• Machine running status, motor working current, and malfunctions are available to be real-time displayed and recorded.
