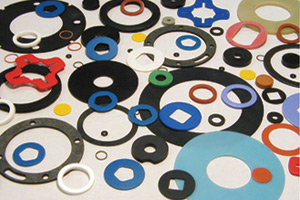

Non Asbestos Sheets

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

ACE- Alpha products offers a wide range of gasket materials. They can be used for specific industrial applications and are all available in different gasket sheet sizes in order to provide the most....

View More Details

Send Enquiry

Company Information

Ace Alpha International FZE

Ajman

View Number

Member Since 7 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Selection of the most appropriate gasket material strongly depends on several factors such as pressure, operating temperature, media, chemical composition ,type of flange, number of bolts.

Our gaskets are made of

Compressed Non Asbestos Synthetic Fibers gasketing materials (CSF), OrganicFibres, Aramid Fibres, Glass Fibres, Carbon Fibres, Mineral Fibres, etc.,

Available with additional improvements: Graphite coating, PTFE & Anti stick coating, With wire reinforcement on request.

Std.LineType

	Composition	Max T (C/F)		Max P.(bar/ psi)	Properties & application
BA - 202	Organic Fibres, NBR	Peak Continuous	180/356 140/284	40/580	Good resistance to water, gases,oils,fuels at lower loading
BA - 203	Aramid fibers, NBR	Peak Continuous	250/482 200/392	50/725	Good resistance to water, gases,oils, fuels at medium loading
BA - 50	Aramid fibers, NBR	Peak Continuous	280/536 220/428	80/1160	Good resistance to water, gases, fuels, food industry and oils good dynamic resistance for higher loading- WRAS/WQc, approved
BA - 55	Synthetic fibers, NBR	Peak Continuous	350/662 270/518	100/1450	excellent and economical solution for a wide range of applications
BA - U	Aramid fibers, NBR	Peak Continuous	350/662 250/482	100/1450	Excellent gasket material for general use with extremely wide application range.- WRAS/WQc,
BA - GL	Glass fibers, NBR	Peak Continuous	440/824 350/662	100/1450	Sealing of very broad range of media at high temperatures.
BA - CF	Carbon fibers, NBR	Peak Continuous	400/752 300/572	100/1450	Sealing of steam and very aggressive media in chemical and petrochemical industries
BA - Auto	Aramid fibers, SBR	Peak Continuous	280/536 220/428	80/1160	Sealing at low surface stresses in automotive and chemical industry
BA - N	Aramid fibers, CR	Peak Continuous	350/662 270/518	100/1450	Sealing of different applications in the refrigeration industry
BA - C	Aramid fibers, CSM	Peak Continuous	200/392 150/302	60/870	Sealing of extremely aggressive media in many industries
BA - R	Aramid fibers, NBR, wire reinforced	Peak Continuous	400/752 350/662	140/2030	Applications where resistance to the high dynamic loadings is the premium requirement
BA - R300	Inorganic, NBR, wire reinforcement	Peak Continuous	550/1022 450/842	500/7251	extreme dynamic conditions in the automotive industry, petrochemical industryand shipyards
BA - 302	Inorganic fibers, NBR, special reinforcement	Peak Continuous	650/1202 600/1112	500/7251	The most demanding requirements in automotive industry, petrochemical industry & shipyards
