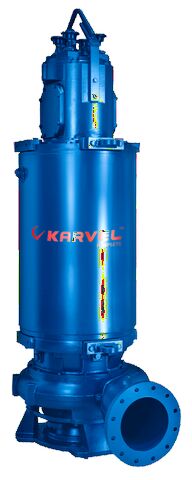

NON CLOG SEWAGE PUMPSETS

Listing ID #4215925

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Product Details

The "KNCS" series is a single stage non clog submersible centrifugal pump of closed coupled vertical (monoblock type) construction. These series of pumps are available with various type of impeller like single vane impeller, two vane impeller, three vane impeller, free flow type, vortex type. These pumps are available with portable & stationary installation. The "KARVEL" make submersible motor is pressure resistant with internal sealed double mechanical shaft seal in a oil filled chamber. Motor sealing is by a wear resistant mechanical shaft seal independent of the direction on rotation. The motor is equipped with two maintenance free ball bearing. The upper and lower bearing are filled with high quality grease possibility. All casing parts are of cast iron, shaft and hardware are of stainless steel. The motor is suitable for continuous operation (S1) under fully loaded condition.

TECHNICAL SPECIFICATIONS

• Delivery upto 13000 lpm
• Head upto 45 meter
• Motor rating - 2.2 kW (3 HP) - 45 kW (60 HP) - 3 Phase
0.75 kW (1 HP) - 2.2 kW (3 HP) - 1 Phase

• Larger ball bearings
• Dynamically balanced rotors
• Mechanical seal option - standard is gland packing
• Delivery pipe: 40mm, 50mm, 65mm, 75mm, 100mm, 150mm, 200mm

Company Details

'KARVEL' the Brand established in memory of Er.K.K.VELUCHAMY B.E, Hons., the inventor of vertical openwells. Karvel pumpsets are made by the same group of technicians who made the first generation vertical openwells. Karvel's designs are derived from the works of Er.K.K.Veluchamy. These products are better in performance and are 10% more efficient then the first generation openwells
LEADERS OF QUALITY :
The company has estabished a well documented quality system to ensure that only the best products reach the market. Modern CNC machines coupled with conventional machines, operated by skilled technicians, ensure that all components are perfectly machined. Materials of international standards are only used. Calibrated measuring instruments, gauges and comparators are used at various levels to ensure high manufacturing standards. Finally every finished pumpset is hydraulically tested for real time performance study before dispatch.
