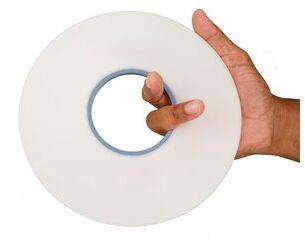

Non-Conductive Heat Activated Cover Tape

480 m rolls are available in 5.4, 9.3, 13.3, 21.3, 25.5, 37.4, 49.4 standard widths (mm); custom sizes are available
Adhesive Type‎ ‎ Heat Activated
Color‎ ‎ Transparent
Haze Percentage‎ ‎ 29%
Product Type‎ ‎ Heat Activated Cover Tape
Standard Roll Length (metric)‎ ‎ 480 m
Standard Width (metric)‎ ‎ 13.3 mm,‎ 21.3 mm,‎ 25.5 mm,‎ 37.4 mm,‎ 49.4 mm,‎ 5.4 mm,‎ 9.3 mm
Tape Type‎ ‎ Non-Conductive
Typical Elongation (percentage)‎ ‎ 60%
Typical Sealing Temperature (Celsius)‎ ‎ 170 - 230
Typical Surface Resistivity - Backside (Ohms per sq)‎ ‎ Non-Conductive
Typical Surface Resistivity - Component side (Ohms per sq)‎ ‎ Non-Conductive
Typical Tensile Strength (N per mm Width)‎ ‎ 2.0
Typical Thickness (metric)‎ ‎ 0.062 mm
