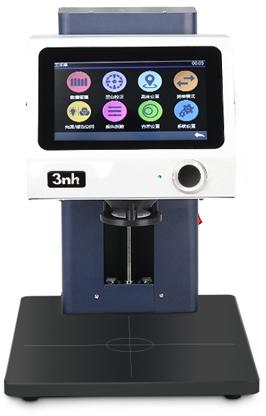

NON-CONTACT BENCHTOP SPECTROPHOTOMETER

Company Information

Ask for more detail from the seller

Report incorrect details

Light SourceFull spectrum LED light,UV light
AvailabilityAbout 10 kg
NotesThe specifications are subject to change without notice
Sensor256 Image Element Double Array CMOS Image Sensor
Non-contact Distance7.5mm
Data PortUSB/RS-232, Bluetooth®4.0
LanguageSimplified Chinese,Traditional Chinese,English
Measuring ApertureΦ20mm(can be customized <20mm)
Measuring modeSample mode/QC Mode/Continuous statistics mode
Spectrophotometric ModeConcave Grating
Wavelength Range400~700nm/10nm output
Sample Height0~150mm
Locating MethodCamera Locating
Measurement ModeSingle Measurement, Average Measurement(2 ~ 99 times)
Measuring TimeAbout 1.5s
Reflectance Range0~200%
Inter-instrument ErrorWithin ΔE*ab 0.2(Average for 12 BCRA Series II color tiles)
Dimension330*250*370mm
Distance Adjustment MethodManual adjustment and automatic adjustment (test height can be stored)
IlluminantD65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Observer Angle2o/10o
Storage EnvironmentTemperature: -20~50oC; Humidity: 0~85% (No Condensation)
Display Screen7
Working EnvironmentTemperature: 0~40oC; Humidity: 0~85% (No Condensation); Altitude < 2000m
Illuminant Life Span5 years, more than 3 million times measurements
Data StorageSample mode + QC mode: 40,000; Continuous statistics mode: 10,000
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Power SupplyDC 24V, 3A Power Adapter
