Non Contact Pyrometer (AST E450C PL)

Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

E450C PL is a two color pyrometer from economic series.The Pyrometer model is a two piece measurement system containing one extended sensor head and one electronic box for non-contact temperature....

View More Details

Send Enquiry

Company Information

Tempsens Instruments (India) Limited

Madri, Udaipur, Rajasthan

4.0/5

(1)

View Number

Member Since 8 Years
Nature of Business Manufacturer
GST No. 08AAACT5482C1ZF

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

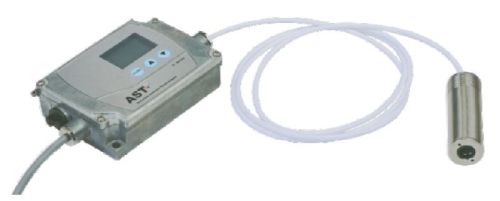

E450C PL is a two color pyrometer from economic series.The Pyrometer model is a two piece measurement system containing one extended sensor head and one electronic box for non-contact temperature measurement of metals, ceramics and graphite etc. in a temperature range between 800^oC to 2500^oC.
Details :

This device measures the temperature of an object by calculating the ratio of the energies at two different wavelength bands. The ratio technique eliminates and reduces errors in temperature measurement caused by changes in Emissivity, Surface finish and energy absorbing materials such as Water vapour etc.The sensor head is unaffected by electromagnetic interferences.
The Pyrometer is equipped with a Inbuilt 4 digit LCD display which offers many signal processing features. The electronic box with integrated Keypad helps in setting parameters like Emissivity, Analog Sub range, Set point, Hysteresis (Hyst), Analog Output, Unit of temp(°C or F), Response Time, Peak Picker and Sensor address etc.

Product Feature :

Digital two color pyrometer with extended Sensor head.
Analog and digital output, USB 2.0 Output, Inbuilt LCD, Laser Targeting & keypad for parameterization

Temperature Range : 800^oC - 2500^oC
Features :

Wide temperature ranges from 800°C to 2500°C.
Spectral range from 0.7 μm....1.15 μm
Laser Pilot Light for precision targeting
Two Color model
Inbuilt LCD Display and Keypad for parameterisation
Fast response time within milliseconds
Analog output options available like 0...20mA,4...20mA and 0...10V
USB 2.0 Digital output and RS-232/RS-485 Serial interface
Relay output
User friendly PC software for communication

Standard Scope of Supply :

Pyrometer with LCD Display
Keypad for parameterizing
Extended Sensor head with 3 mtr cable
Laser Targeting Light
Analog output 4...20mA, 0...20mA, 0... 10V
USB 2.0 Digital output, USB Cable
Relay Output
Calibration certificate, Software & Operation manual

Optional :

Mechanical and Electrical Accessories
RS-232/RS-485 interface card
Extra Cable Lengths

Applications :

Induction heating Forging
Casting Sintering
Annealing Melting
Welding Rolling

Specifications

Model	E450C PL
Temperature Range (Analog sub-range adjustable)	800^oC….2500^oC
Spectral Range	0.7…1.15 μm
Photodetector Type	Si/Si
Distance to Spot Size Ratio	3.3340277778
Emissivity (ε)	0.1….1.0 adjustable (Single Color mode)
Emissivity Slope (ε1 / ε2)	0.75…1.25 slope adjustable (Two color mode)
Response Time	20 msec adjustable upto 10 sec
Accuracy	± 0.5% of the measured value + 1^oC
Repeatability	0.1% of reading in ^oC + 1^oC
Sighting Option	Laser Pilot Light (PL)
Analog Output	0-20mA, 4-20mA, 0-10V (User selectable)
Digital Output	USB 2.0 RS-232/RS-485 interface card (Optional) *At a time only one digital output possible
Operating Temp. Range	Electronic box and Sensor head upto 70^oC
Storage Temp. Range	-20^oC….70^oC
Relay Output	Relay Output with hysteresis 60V DC/42V AC RMS, 0.4A
Adjustable Parameters and Features via Software	Emissivity, Emissivity Slope, Response Time, Clear Time (Peak Picker), Analog Output and Analog Scale (Sub range), Sensor type (Switches b\w 2-color or single color), Switch off level, Unit Of Temperature (°C/°F), Communication mode(Comm.mode), Record feature etc.
Adjustable Parameters and Features via Keypad	Emissivity, Set point, Hysteresis (Hyst), Analog Sub Range, Analog Output, Unit of temperature, Sensor address, Sensor type (Switches b\w 2-color or single color), Switch off level, Response Time, Clear Time (Peak Picker) etc
Power Supply	24V DC
Power Consumption	Max 2.5 watt
Laser Power	<1 m watt
Protection Class	IP65
Housing	Sensor Head - Stainless Steel Electronic Box - Zinc
Isolation	Power supply, Digital output and Analog output are galvanically isolated against each other Not applicable for USB 2.0 digital output
Operating Humidity	10-95%, Non-Condensing Conditions
Weight & Dimensions	600g 112.5mm x 82.5mm x 33mm (L x W x H)
