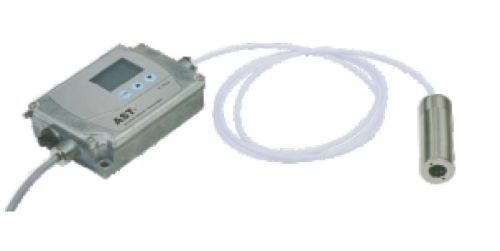

Non Contact Pyrometer (AST EL50)

Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

EL50 is an economic digital IR Pyrometer from E series with extended sensing head in 4 wire technology for non-contact temperature measurement between 0oC to 800oC.The sensor head is unaffected by....

View More Details

Send Enquiry

Company Information

Tempsens Instruments (India) Limited

Madri, Udaipur, Rajasthan

4.0/5

(1)

View Number

Member Since 8 Years
Nature of Business Manufacturer
GST No. 08AAACT5482C1ZF

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

EL50 is an economic digital IR Pyrometer from E series with extended sensing head in 4 wire technology for non-contact temperature measurement between 0^oC to 800^oC.The sensor head is unaffected by electromagnetic interferences. The pyrometers are specially designed in a such way that sensor head can withstand ambient temperature upto 120^oC easily.
Details :

The pyrometer is equipped with a Inbuilt 4 digit LCD display which offers many signal processing features. The electronic box with integrated Keypad helps in setting parameters like Emissivity, Analog Sub range, Set point,Hysteresis (Hyst), Analog Output, Unit of temp(°C or F), Response Time, Peak Picker and Sensor address etc.
EL50 is provided with USB 2.0 output and PC software. The pyrometer can be powered through USB port. In this case no external power supply is required. 24 VDC is required for operation of Analog Output, RS-232 & RS-485 & Relay Output.Analog output is 4…20mA, 0…20mA, 0…10V, Thermocouple type “K” or “J” (userselectable) via keypad or software. RS-232/RS-485 Serial interface card is available as optional.

Product Feature : Digital pyrometer with extended Sensor head. Analog and digital output, USB 2.0 Output, Inbuilt LCD, Laser Targeting & keypad for parameterization

Temperature Range : 0^oC - 800^oC
Features :

12V to 28V DC with reverse polarity protection
Sensor head withstands ambient temperature upto 120°C
Spectral range 8 μm...14 μm
Wide temperature ranges (0^oC to 800^oC)
Inbuilt LCD Display and Keypad for parameterisation
Fast response time within milliseconds
Analog output 4…20mA, 0…20mA, 0…10V, Thermocouple
type “K” or“J” (user selectable)
USB 2.0 Digital output
RS-232/RS-485 Serial interface card
Relay output
User friendly PC software for communication

Standard Scope of Supply :

Pyrometer with LCD Display
Keypad for parameterizing
Extended Sensor head with 3 mtr cable
Analog output like 4…20mA, 0…20mA, 0…10V, Thermocouple type “K” or“J” (user selectable)
USB2.0 Digital output, USB Cable
Relay Output
Calibration certificate, Software & Operation manual

Optional :

Mechanical and Electrical Accessories
RS-232 / RS-485 interface card
Extra Sensor Head Extension Cable Lengths

Applications :

Plastic, Textile
Rubber Fluids
Ceramic Oxide/Painted metal surface
Paper Wood and Glass Industries

Downlaod

Download Detail File : Click Here

Technical Specification

Model	EL50
Temperature Range (Analog sub-range adjustable)	0^o - 800^oC
Spectral Range	8…14 μm
Photodetector Type	Thermopile
Distance to Spot Size Ratio	2:1 15:1 (To be specified while ordering)
Emissivity (ε)	0.1….1.2 adjustable
Response Time	20 msec adjustable upto 10 sec
Accuracy	± 1% of the measured value or 3^oC whichever value is greater (The sensor head must be at constant ambient temperature for a minimum of 15 minutes)
Repeatability	0.3% of reading in ^oC + 1^oC
Analog Output	0-20mA, 4-20mA, 0-10V, Thermocouple Type “K” or “J” (User selectable)
Digital Output	USB 2.0 RS-232/RS-485 interface card (Optional) *At a time only one digital output possible
Operating Temp. Range	Electronic Box upto 70^oC Sensor head upto 120^oC
Storage Temp. Range	-20^oC…70^oC
Relay Output	Relay Output with hysteresis 60V DC/42V AC RMS,0.4A
Adjustable Parameters and Features via Software	Emissivity, Response Time, Clear Time (Peak Picker), Analog Output, Sub Range, Unit Of Temperature (°C/°F), Communication mode(Comm.mode), Record feature etc.
Adjustable Parameters and Features via Keypad	Emissivity, Setpoint, Hysteresis (Hyst), Analog Sub Range, Analog Output, Unit of temperature, Sensor address, Response Time, Clear Time (Peak Picker) etc.
Power Supply	12V to 28V DC with reverse polarity protection
Power Consumption	Max 2.5 watt
Protection Class	IP65
Housing	Sensor head-Stainless Steel; Electronic Box:Zinc
Isolation	Power supply, Digital output and Analog output are galvanically islolated against each other Not applicable for USB 2.0 digital output
Operating Humidity	10-95%, Non-Condensing Conditions
Weight & Dimensions	600g 112.5mm x 82.5mm x 33mm (L x W x H)
