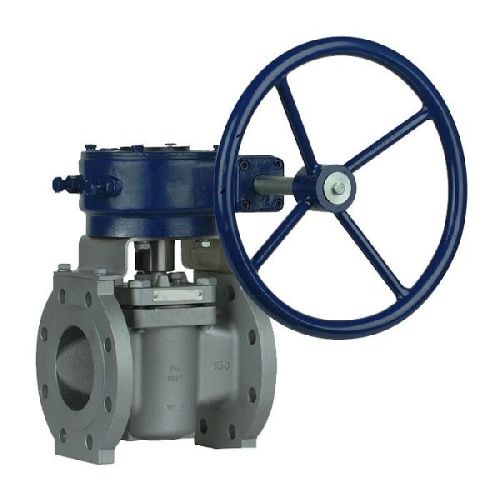

NON LUBRICATED PLUG VALVES

End ConnectionASME B16.5, ASME B16.25, ASME B16.11,ASME B1.20.1, BS 21, BS 10 TABLE-E, BS 4504 PN10, DIN 2532 PN 10, ASME B16.47 SER A&B
FACE TO FACEASME B16.10, API 6D
TESTINGAPI 598 / API 6D / EN 12266 / BS 6755 PART-1
DESIGNAPI 599, API 6D.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

End ConnectionASME B16.5, ASME B16.25, ASME B16.11,ASME B1.20.1, BS 21, BS 10 TABLE-E, BS 4504 PN10, DIN 2532 PN 10, ASME B16.47 SER A&B
FACE TO FACEASME B16.10, API 6D
FIRE TESTAPI 6FA / API 607 / BS 6755 PART-2
TESTINGAPI 598 / API 6D / EN 12266 / BS 6755 PART-1
PT RATINGASME B16.34
NACE COMPLIANCENACE MR 0175 / ISO 15156
DESIGNAPI 599, API 6D.

SPECIFICATIONS
VALVE SIZES	1/2" TO 36"
CLASS RATINGS	CLASS 150 TO 2500, PN CLASSES ALSO AVAILABLE
END CONNECTIONS	FLANGED FF/RF, RTJ, BWE, SCRD- BSP(F), NPT(F)
TYPES OF PATTERN	SHORT, REGULAR & VENTURI PATTERN
OPERATION	LEVER / WRENCH, GEARBOX, ELECTRICAL ACTUATORS
TYPES OF PLUG PORT	ROUND, V-PORT, TRAPEZOIDAL PORT, etc
SPECIAL REQUIREMENTS	BYPASS ARRANGEMENT, DRAIN, CLADDING, FUGITIVE EMISSION TESTING, EXTENSION SPINDLE, LIVE LOADING ARRANGEMENT.
