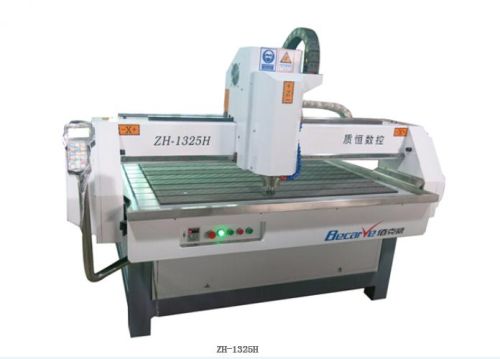

Non Metal CNC Router Machine

MOQ1 Unit
Availability1000kg
Resolution0.01mm
Maximum feed thickness100mm
Z axis travel100mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Availability1000kg
X/Y axis travel1300*2500mm
Operating voltageAC220V/50-60hz
Z axis travel100mm
Maximum feed thickness100mm
Reposition accuracy0.1mm
Software operating environmentWindows XP/7
Maximum speed of running30m/min
Resolution0.01mm
CommandG code*u00*.PLT*
Dimensions3070*2050*1480mm
Maximum speed of engraving20m/min

1.working area:1300*2500mm
2.spindle power:4.5kw water cooling spinlde,24000RPM(air cooling spindle optional)
3.Taiwan Hiwin sliding block and guide way
4.automatic cooling system for material
5.automatic oil feeding system
5.WEIHONG DSP controller
6.stepper motor
7.3kw dust collect
8.macine power: 800w220v
9certification:CE and ISO9001
10.Apply for stainless steel, aluminum, copper, GI, wood, acrylic, MDF, PVC ect metal and non-metal material
11.with one year guarantee
