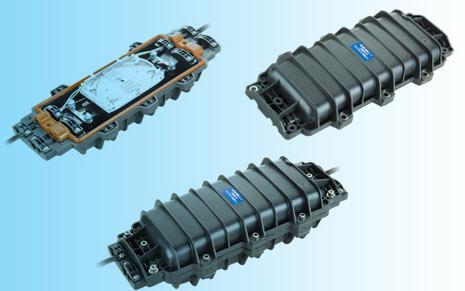

Be it wall-mounting, duct-mounting, underground, handhole-mounting or aerial, this Non Removeable Screw Type Splice Closure is apt for the most demanding of work environments. These Non Removeable Screw Type Splice Closures are quick and convenient to install as compared to the rest of their contemporaries. Highlights
| Outside dimension (LxWxH) | 470x180x125 (mm) |
|---|---|
| Weight (excluding outside box) | 2650g - 2975g |
| Number of inlet/outlet ports | 3 (pieces) on each side (total 6 pieces) |
| Diameter of fiber cable | φ8 - φ20 (mm) |
| Capacity of FOSC | Bunchy : 12 - 96 (Cores) Ribbon : max. 144(Cores) |
| Name of components | Quantity | Usage | Remarks |
|---|---|---|---|
| Housing | 1 set | Protecting fiber cable splices in whole | Internal diameter : 320x120x100(mm) |
| Fiber optic splice tray (FOST) | max. 6 pcs (bunchy) max. 4pcs (ribbon) | Fixing heat shrinkable protective sleeve and holding fibers | Suitable for : Bunchy :12,24(cores) Ribbon : 3 (pieces) |
| Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | |
| Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
| Port plug | 6 pieces | Sealing empty ports | |
| Pressure testing valve | 1 set | After injecting air, it is used for pressure testing and sealing testing | Configuration as per requirement |
| Earthing deriving device | 1 set | Deriving metallic components of fiber cable in FOSC for earthing connection | Configuration as per requirement |
Main Accessories & Special Tools
| Name of Accessories | Quantity | Usage | Remarks |
| Heat Shrinkable Protective Sleeve | Protecting fiber splices | Configuration as per capacity | |
| Nylon Tie | Fixing fiber with protective coat | Configuration as per capacity | |
| Earthing Wire | 1 piece | Putting through between earthing devices | To put through as per actual requirement |
| Abrasive Cloth | 1 piece | Scratching fiber cables | |
| Labeling Paper | 1 piece | Labeling fibers | |
| Special Wrench | 2 pieces | Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube | |
| Measuring Paper | 1 piece | To measure perimeter, of which its diameter is enlarged with seal tape | To measure perimeter with the corresponding measuring paper |
| Seal Tape | 1 ring | Enlarging diameter of fiber cable which fits in with gasket ring. | Configuration as per specification |
| Insulation Tape | 1 ring | Enlarging diameter of fiber cable for easy fixing | |
| Metal Hoop | 1 set | For wall mounting and pole hugging | |
| Buffer Tube | decided by customers | Hitched to fibers and fixed with FOST, managing buffer. | Configuration as per requirement |
| Desiccant | 1 bag | Put into FOSC before sealing for desiccating air |
