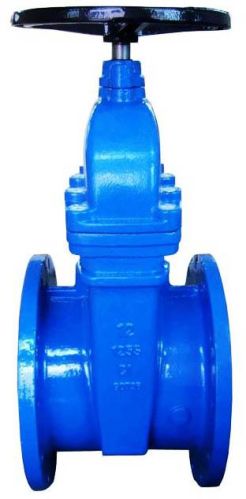

Contact SupplierWe are offering non rising resilient seated gate valve
model no.: z45x
nominal diameter: 40-1200mm
nominal pressure: 1.0/1.6/2.0/2.5mpa
testing pressure: body seat: 1.5 times rated pressure
seat test: 1.1 times rated pressure
standard: din and gs
features:
1. Equipment used in cutting off medium in pipeline
2. Suitable for hand wheel, gear operator or electric actuators.
body:cast iron/ductile iron
bonnet:cast iron/ductile iron
wedge:cast iron/ductile iron
stem:stainless steel
standard:
design standard: mss sp-67, api609, en593
end flange: din, bs, jis, iso, ansi.
top flange: iso5211
face to face: api609, iso5752 series 20, bs5155
test&check: api598
1) working temperature: -20-120o
2) applicable medium: water, oil, gas, vapor, etc.
