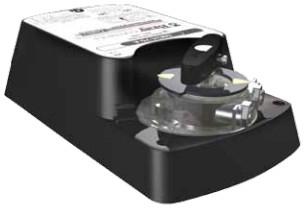

Non Spring Return Electric Actuator, Brand Name : Bray

We are offering non spring return electric actuator.
Bray non spring return electric actuator d24-280-a belongs to d-series which is a direct-mount line of electric actuators that
operates on 24v ac or dc power and is available for use
with floating, proportional, or resistive controllers. These
bi-directional actuators do not require a damper linkage, and
are easily installed on a round shaft up to a 34 in. (19 mm)
diameter or a square shaft up to 58 in. (16 mm). They can
also be mounted to valves using one of the bray valve
linkage kits.
The d-series models deliver up to 280 lb-in (32 nm) of
torque. The angle of rotation is mechanically adjustable from 0 to 90â° in 5-degree increments. Integral
auxiliary switches are available to indicate end-stop position
or to perform switching functions at any angle within the
selected rotation range. Position feedback is available
through switches, a potentiometer, or a 0 (2) to 10 vdc signal.
