Non Woven Bag Making Machine

We are one of the leading exporters and suppliers of Non Woven Bag Making Machine in Faridabad, Haryana. The machines commonly use non-woven fabric as raw material. They can produce non-woven bags of various sizes and shapes, such as D cutting bags, soft loop bags, strip through bags, T-shirt bags, gift bags and other packaging bags. Equipped with photo-electric tracking system, the machines automatically stop when production is complete.

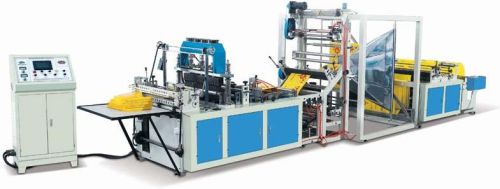

GND-B700 Non-woven Bag Making Machine
Use :

This machine takes non-woven fabric as raw materials. It can produce non-woven bags of various sizes and shapes, such as non-woven D cutting bags, soft loop bags, strip through bags, T-shirt bags, gift bags, and other products packaging bags.

Performance :

• It adopts the PLC programmable logic controller as main control, touch screen. (Made in Taiwan)
• Unwinding tension is controlled by magnetic system.
• Edge positioning control system (EPC).
• Equipped with photoelectric tracking material, stopping automatically when the material is finished.
• Stepping motor for feeding material.(YASKAWA servo motor) for your choice.
• Photoelectrical eyes for tracking printed bag and the feeding error.
• Vector inverter as speed regulator.
• Ultrasonic for cross sealing for export standard quality Taiwan Mingyou.
• Automatic accounting and set table counting alarm.
• It can make various shapes bags such as vest bag, flat bag. handle bag and patch bag.

Main Specification of the Machine :

• Production speed - 20-120pcs/min
• Unwinding fabric width (mm) - 1300
• Bag width - 100-800mm
• Bag length -  200-600mm
• Non-woven fabric specification (G.S.M) - 25-120g
• Bag making precision - ≤±0.5mm
• Power supply - 220v
• Total power - 8KW
• Overall size - 7000×1900×2100mm

Components of the Machine :

• Crossing Ultrasonics - Taiwan Mingyou.
• Relay: - Omron brand
• PLC - made in Taiwan, WEINVIEW brand.
• Pneumatic components - made in Zhejiang.
• Electrical components and switch - CHNT brand
• Inverter - HuaLan Brand, China
• Bearings - made in Harbin, China
• Key part of Horn - NTK, Japanese.
