Contact SupplierIn industry dust collection
. Power Offer Or Stations
Filtered dust, waste incineration, Flue ash, discharging flue ash ,Coal dustÂ
. Building and ConstructionÂ
Cement, iron and steel ,furnace dust, gypsum, limestone, finely ground quartz,Â
Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground ,fluorid, production of aluminumÂ
. Chemical IndustryÂ
Thomas meal (Fertilizer) ,Rubber compounds, sinter dust, catalysts ,Sodium sulfateÂ
Soap powder
In machinery top:
Silos/Tanks,Discharging systems,Warehouse units ,Mixing equipment ,Homogenizing systems,Chute Bottoms,Conveyor systems,Ventilator systems,Aeration systems ,Powder Coating Machinery ,Bottoms for sinter basin

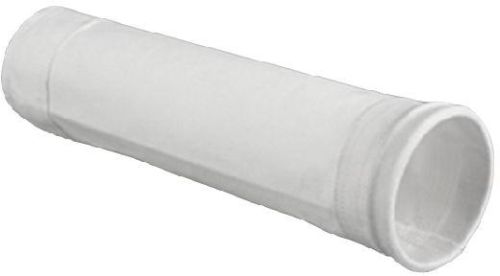

Brief Introduction of filter bags:
Bag filters are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems. Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, anti-static, acid resistant and more.
| Item | Unit | Parameter |
| Material | Face:Polyester | Scrim:Polyester |
| Grammas Per Square Meter | 550g±5%g | |
| Air Permeability (200Pa) | 20-50L/dm3.min | |
| Thickness | 1.7±0.2mm | |
| Temperature Resistance | Continous | 260 |
| Peaks | 280 | |
| Minimum Breaking Strength | N/50*200mm | Warp:≥1000 |
| Weft:≥1200 | ||
| Elongation at Break | % | Warp:≤25 |
| Weft:≤35 | ||
| Surface Treatment | Singeing Calendering Heat-set PTFE Membrane | |
| Using Scope | Cement Drying ,Slag Powder | |
Advantages of the product:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.;
2.Strong intensity;
3.Excellent anti-abrasion,good finishing treatment;
4.Good raw material, competitive price;
5.High filtration efficiency ;
6.Fast delivery;
7.Size can be customized;
8.Factort manufacturer could contal quality and price;
9.Strict quality inspection and contol;
10.Professional designer teams to match with your operating condition.
