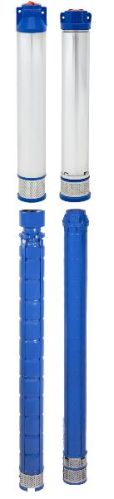

Noryl Submersible Deep well Pumps

Listing ID #3880979

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Mascot offer the best in class V3 & V4 Submersible pump set with widest range of Flow and Head, designed to work in Sandy Water as well as Clear water. Construction : 3” & 4” Submersible Borewell....

View More Details

Send Enquiry

Product Details

Mascot offer the best in class V3 & V4 Submersible pump set with widest range of Flow and Head, designed to work in Sandy Water as well as Clear water.

Construction :

3” & 4” Submersible Borewell Pumps or Deep Well pumps suitable for Borehole of 80 & 100 mm. Coupled with Water filled Submersible borewell motor with NEMA Standards (for Spline Coupling) & Key Type Coupling (Indian Standards). The Glass Filled Noryl Borehole Submersible pump are designed to resist sand in water for long lime

Features High Efficiency Design

All Submersible borewell Pump are designed for Best Hydraulic Efficiency in the Range. This help to Pump water in large volume and Low Power Consumption of Motor. Mascot Pumps Ltd, Provide special Glass Field Noryl Diffuser & Impeller.

Designed for Sand Resistance

Special Glass Field Noryl that Resist Sand wear to maximum.
Stainless Steel shims on the Neck Ring and Diffuser Bush Area for long life.
Stainless Steel Hardware and Tube used in all submersible deep wells

Non Return Valve (NRV)

All Mascot Pumps are provided with NRV to avoid effect of Water Hammer in Deep well Pump and prevent Reverse Rotation of borehole Pump.

Dynamic Balancing

All Rotary Components Rotor of motor etc are dynamically balance as per the ISO specified Standards

Application

Pumping Clear Cold Drinking Water from Bore Hole / borewell for use as Water supply Pump, Irrigation Pump, Agriculture Pump, Sprinkler & Garden Application.

Performance Range of Deep Well Pump

Minimum Borewell Diameter:	80 mm / 3”
Maximum Pump Diameter:	94 mm /
Flow Range m3/hr (Max.):
Head Range mts (Max.):	81 mt

Operating Condition of Deep Well pump

Maximum Liquid Temperature:	40oC
Minimum Flow Velocity:	0.2 m/sec.
Maximum Sand Content:	50g/m3

Company Details

Mascot Pumps Ltd, is a fully integrated Manufacture of Water Pumps & Submersible Motor. The Foundation on Mascot Brand was laid back in 1975, since then it is Owned by family who belong to highly Industrious PATEL Community. This ISO 9001 Certified Manufacturer of Water Pump that produce Borewell Submersible pumps, Submersible motors, Centrifugal Pumps, Horizontal Open Well pumps. We have been first few Pump Manufacturer from India to Start Fabricated Stainless Steel Impeller for Bore wells pumps.With main focus on Agricultural pumps and Irrigation pumps like Bore Well Submersible pumps, Submersible Motor for ground water pumping. Mascot also manufacture Mobobock pump & Centrifugal pumps for Farms & Sprinkler Irrigation in India. Along with Open Well pumps / Fountain pumps.
