Novel Designed Pneumatic Bidirectional Shock Test System

₹ 9.10 Lakh - ₹ 1.09 Cr / SET

Frequency50 Hz,60 Hz,
DimensionChina
ConditionNew,
Surface TreatmentColor Coated,
Supply TypeManufacturer
Preferred Buyer Location All Countries Except India

Company Information

Member Since 4 Years
Nature of Business Manufacturer
Year of Establishment 2006

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginChina
Number Of FlowerShock Testers,
ConditionNew,
Frequency50 Hz,60 Hz,
Surface TreatmentColor Coated,
PhaseSingle Phase,
DimensionChina
colorwhite+grey
PowerAC220V ± 10%，50Hz
StandardsMIL-STD-810F IEC68-2-27 UN38.3
Shock WaveHalf Sine Wave
Working directionbidirectional

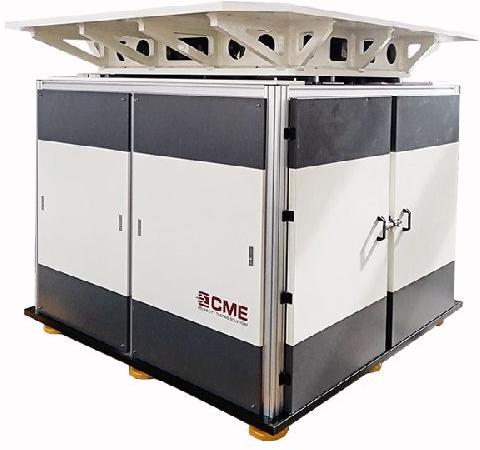

KRD17 series pneumatic bidirectional vertical shock test system is the novel designed and developed for large specimens that cannot or are not easy to turn over, especially adopt for battery testing. It can complete vertical upward and downward shock test in one test stand without moving the UUT.
Pneumatic drive, no pollution to the environment
One machine with multiple functions, one clamping, to complete the upward and downward shock and bump tests, with high efficiency
Built-in pneumatic brake mechanism, safe and reliable
One-machine management for control and measurement, convenient operation
Air springs and dampers are used to reduce vibration, and the installation is free of foundation

Technical Specifications

Model Parameters		KRD17－50	KRD17－100	KRD17－200	KRD17－500	KRD17－800	KRD17－1000	KRD17－2000
Rated Load (kg)		50	100	200	500	800	1000	2000
Table size (mm)		500×500	600×600	800×800	1000×1000	1200×1200	1500×1500	2000×2000
Shock Direction		Downward
Peak Acc. (G)	Half-Sine	10-750	10-600	10-450	10-300	10-250	10-200	10-150
	Post-Peak Sawtooth	10-200	10-200	10-100	10-100	10-100	10-100	10-100
	Trapezoid	15-200	15-200	15-100	15-100	15-60	15-60	15-50
Pulse Duration (ms)	Half-Sine	1.5-60	2-60	2.5-60	4-60	4.5-60	5-60	6-60
	Post-Peak Sawtooth	3～18			6～18
	Trapezoid	3～18	3～18	6～18
Shock Direction		Upward
Shock Wave		Half Sine Wave
Shock Peak Acceleration (G)		15-350	15-300	15-200	15-150	15-100	15-100	15-75
Shock Pulse Duration(ms)		3.5-60	3.5-60	4-60	4.5-40	5.5-60	5.5-60	6-60
Overall Dimension (mm)		1250×1250×1600	1250×1250×1600	1300×1300×1700	1350×1350×1750	1550×1550×1750	1650×1650×1850	2000×2000×1900
Weight (kg)		3000	3200	3400	4000	5000	6000	8000
Power		AC220V ± 10%，50Hz
Air Source		≤1MPa
Installation Conditions		Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment
Working Environment		Temperature range 0 ~ 40℃; Humidity ≤ 80%, non-condense
Standards		MIL-STD-810F IEC68-2-27 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580
