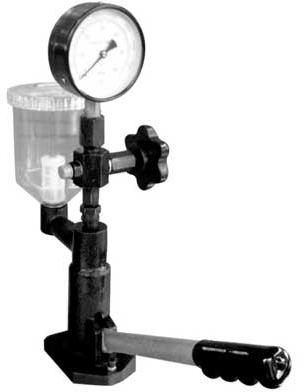

Nozzle Tester

We are offering Nozzle Tester. Nozzle Tester.
EG1101 Double Springs Nozzle Tester(with pressure gauge)
Functions
Allows to test and to calibrate diesel double springs injectors.
- Equipment with a manometer gauge for internal pressure regulation
- Digital display permits to calibrate the injector opening pressure
- One shot and continuous spraying test
- rate of oil pressure and air pressure is 50:1
EG1102 Double Springs Nozzle Tester(Digital Controller)
Functions
Allows to test and to calibrate diesel double springs injectors.
- Equipment with a manometer gauge for internal pressure regulation
- Digital display permits to calibrate the injector opening pressure
- One shot and continuous spraying test
- rate of oil pressure and air pressure is 50:1
EG1103（S60H ） Nozzle Tester
Features
- Initiativeopen pressure of injectors
- Sound of needle valve vibration
- Spraying shape
- Sealing function of needle valve and nozzle body mating pair
- Sealing function in response to press.
MAIN TECHNICAL DATA
- Highest pressure: 400kgcm2
- Volume of fuel box: 400cc
ACCESSORIES
1. M14*1.5-M14*1.5
2. M14*1.5-M12*1.25
3. M14*1.5-M12*1.5
Net Weight: 3.5kgs
EG1104 Nozzle Tester
Features
- Initiativeopen pressure of injectors
- Sound of needle valve vibration
- Spraying shape
- Sealing function of needle valve and nozzle body mating pair
- Sealing function in response to press.
MAIN TECHNICAL DATA
- Highest pressure: 400kgcm2
- Volume of fuel box: 400cc
ACCESSORIES
1. M14*1.5-M14*1.5
2. M14*1.5-M12*1.25
3. M14*1.5-M12*1.5
Net Weight: 5.5kgs
