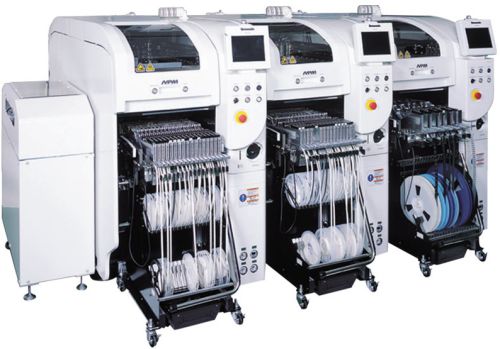

Electric NPM Series Pick And Place Machine, Color : Off White

Get Latest Price

Driven TypeElectric
MaterialStainless Steel
FinishingDrive system High-accuracy, low-maintenance, linear-motor driven gantry(s) system
Brand NamePanasonic
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Driven TypeElectric
ConditionUsed
Brand NamePanasonic
MaterialStainless Steel
ShapeRectangular
FinishingDrive system High-accuracy, low-maintenance, linear-motor driven gantry(s) system

Specifications

Model Name (Number)		NPM-D3 (NM-EJM6D	NPM-W2 (NM-EJM7D)	NPM-TT2 (NM-EJM-1E)	NPM-W2S (NM-EJM5E)
Concept		Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Single-gantry, multi-head, process-driven module
Drive system		High-accuracy, low-maintenance, linear-motor driven gantry(s) system
Component alignment		Multi-recognition digital camera
Head design options		Inline array of 16, 12, 8, 3 and 2(D3) nozzle heads
Applicable heads		16, 12, 8, 2	16, 12, 8, 3	8, 3	16, 12, 8, 3
Board dimensions (Single lane)		L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt	L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt
Board dimensions (Dual lane)		L 510mm x W 550mm 510mm x W 550mm	L 750mm x W 260mm L 750mm x W 510mm	L 510mm x W 300mm L510mm x W 550mm	L 750mm x W 260mm L 750mm x W 260mm
Placement accuracy	Chip	±25µ Cpk ≥ 1.0	±25µ Cpk ≥ 1.0	±40µ Cpk ≥ 1.0	±25µ Cpk ≥ 1.0
Placement accuracy	QFP	±30µ Cpk ≥ 1.0	±30µ Cpk ≥ 1.0	±30µ Cpk ≥ 1.0	±30µ Cpk ≥ 1.0
Throughput	Ideal	Up to 84,000 CPH	Up to 77,000 CPH	Up to 36,000 CPH	Up to 38,500 CPH
Throughput	IPC9850	63,300 CPH (1608C)	59,200 CPH (1608C)	8,300 CPH (208 QFP)	30,000 CPH (1608C)
Component range	Min	03015 microchip	03015 microchip	0402 microchip	03015 microchip
	Max	100mm x 90mm	150mm x 25mm	150mm x 25mm	150mm x 25mm
	Height	28mm	30mm	30mm	30mm
	Special height		40mm		40mm
	Insertion force	.5N ~ 50N	.5N ~ 100N	.5N ~ 100N	.5N ~ 100N
Feeder capacity	Reels w/ no tray feeder	68	120	120	120
	Reels w/ tray tower	24	86	86	86
	Reels w/ twin tower	N/A	60	N/A	60
	Reels w/ 2 tray towers	N/A	N/A	52	N/A
	Trays w/ tray tower	20	20	20	20
	Trays w/ twin or 2 tray towers	N/A	40	40	40
Facilities	Electric	Voltage: 3 Phase AC 200/220 ±10V; AC 380 400 420 480V ±20V Frequency: 50/60 Hz
		2.7KVA	2.8KVA	2.5KVA	2.0KVA
		Peak current 30A @ 200V	Peak current 40A @ 200V	Peak current 38A @ 200V	Peak Current 22A @ 200V
	Pneumatic	.5 ~ .8MPa, 100L/min	.5 ~ .8MPa, 200L/min	.5 ~ .8MPa, 200L/min	.5 ~ .8MPa, 200L/min
	Mass	1900kg w/ 2 carts	2850kg w/ 2 carts	3090kg w/ 2 carts	2850kg w/ 2 carts
	Dimension	832mm x 2729mm	1280mm x 2570mm	1300mm x 2570mm	1280mm x 2618mm
